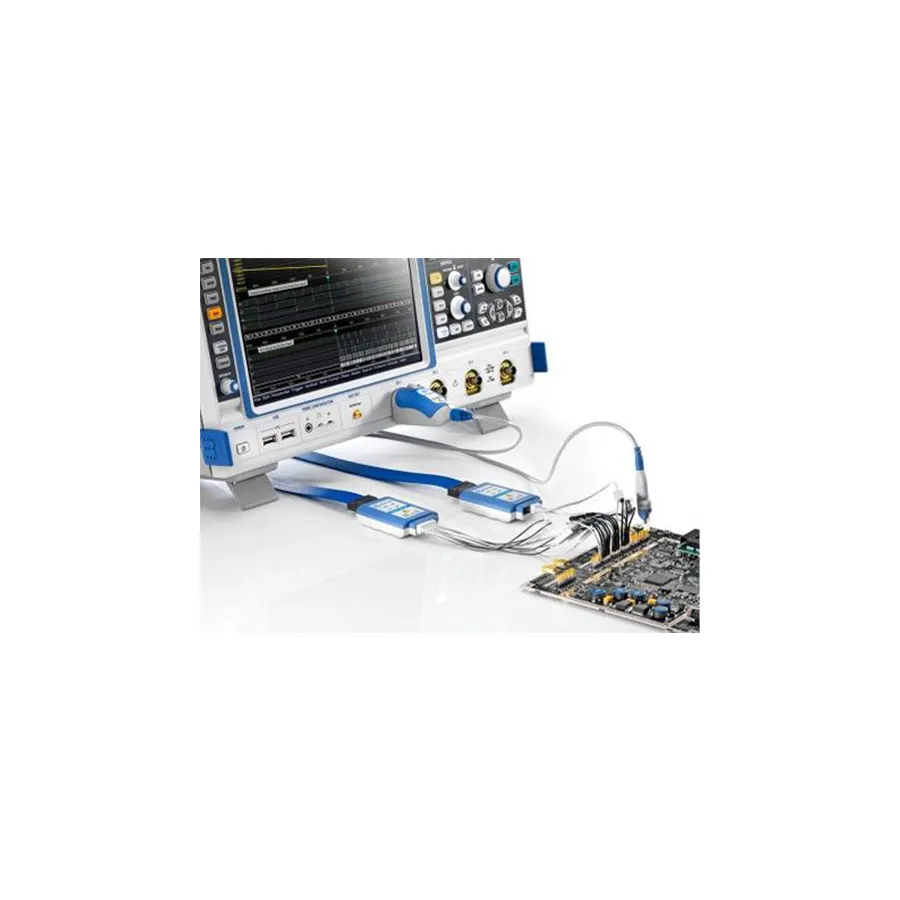

Rohde & Schwarz RTO-B1 Mixed Signal Option
Request a quote
Rohde & Schwarz RTO-B1 mixed signal option adds 16 digital channels with 5 GSa/s sampling and 400 MHz bandwidth to RTO2000 oscilloscopes.
Product details
| Model | RTO-B1 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTO-B1 is a mixed signal option that transforms RTO2000 series oscilloscopes from digital signal oscilloscopes into full-featured mixed signal oscilloscopes (MSO). This upgrade combines the measurement capabilities of digital oscilloscopes with the analysis capabilities of logic analyzers.
Key Features
- 16 digital channels for logic analysis
- 5 GSa/s sampling rate
- 400 MHz bandwidth
- Synchronized analog and digital measurements
- Logic analyzer functionality integrated with oscilloscope
Applications
- Embedded system debugging with mixed signal analysis
- Digital protocol verification alongside analog measurements
- Complex circuit troubleshooting requiring both analog and digital insight
Specifications
| Type | Mixed Signal Option |
| Series | RTO Series |
| Alternate Product Number | 1326.3558.02 |
| Series Compatibility | RTO Series |
