Rohde & Schwarz RTM-K3 is an oscilloscope software bundle enabling CAN and LIN bus triggering, decoding, and analysis with symbolic frame support.
Product details
| Model | RTM-K3 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTM-K3 is a software bundle that adds CAN and LIN bus triggering and decoding capabilities to Rohde & Schwarz oscilloscopes in the RTM series. The software provides symbolic decoding with industry-standard DBC file support, enabling engineers to decode and analyze serial bus traffic in real-time during measurements.
Key Features
- Symbolic decoding for CAN and LIN addresses with DBC file support

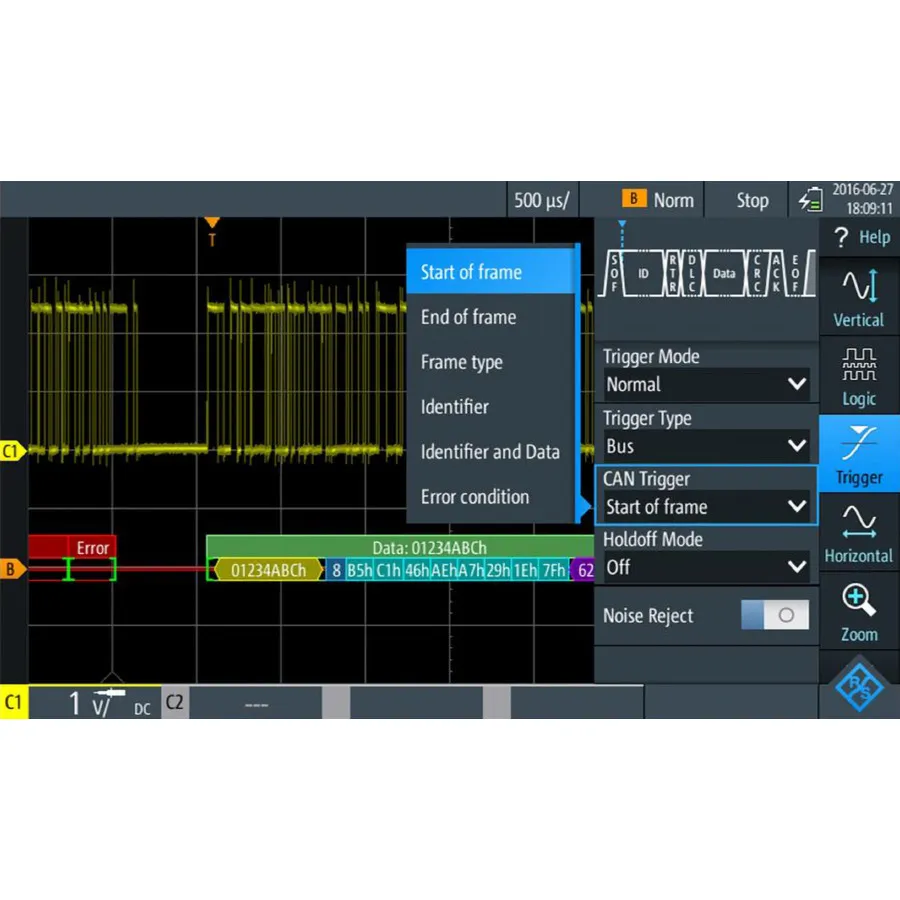

- Hardware-accelerated trigger on frame start, frame ID, data, and error conditions
- Powerful search and navigation by frame type, identifier, data, and errors
- Time-correlated on-screen decoding synchronized with serial waveforms
- CAN and LIN eye-diagram mask testing with standard mask test functionality
- Color-coded telegram and table-view result display
Applications
- Automotive CAN and LIN bus debugging and validation
- Protocol compliance and error detection
- Signal integrity testing with mask analysis
- Embedded systems development and integration testing
Specifications
| Type | Serial Triggering and Decoding Bundle |
| Series | RTM Series |
| Alternate Product Number | 1337.8627.02 |
| Series Compatibility | RTM Series |
