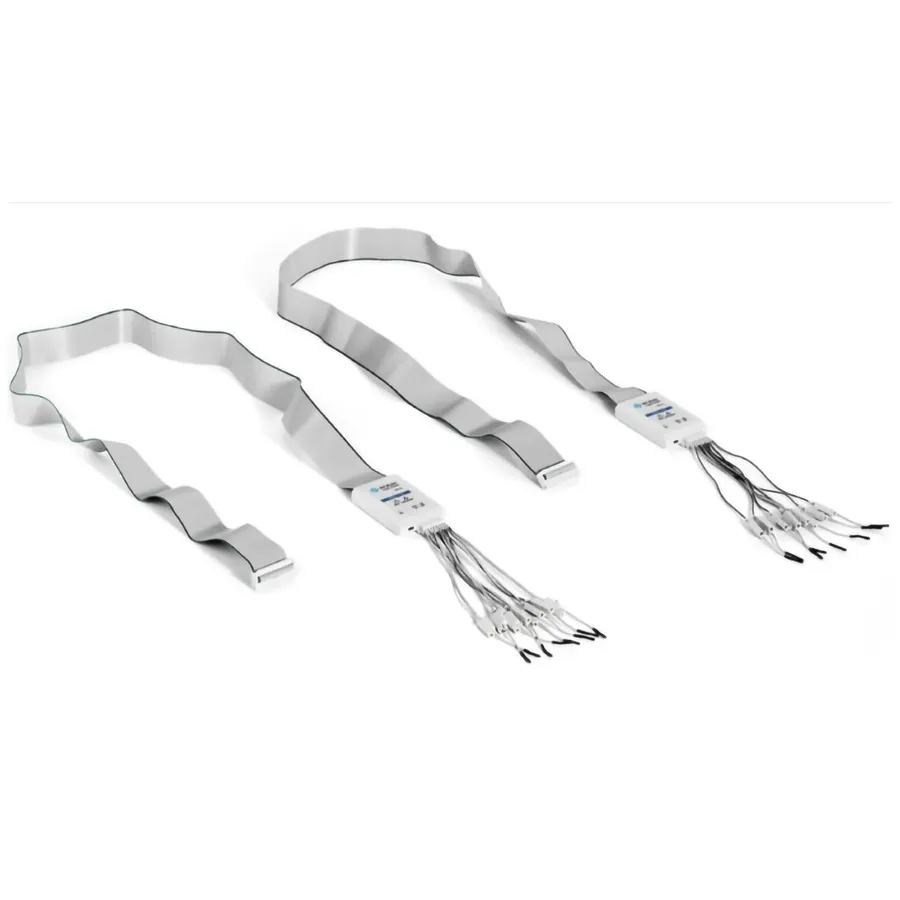

Rohde & Schwarz RTB2-B1 Mixed Signal Option
Request a quote
Rohde & Schwarz RTB2-B1 mixed signal (MSO) option for RTB2 series with 16 digital channels, 300 MHz bandwidth, 2.5 GSa/s sampling, includes two logic probes.
Product details
| Model | RTB2-B1 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTB2-B1 is a mixed signal (MSO) option for the RTB2 series oscilloscope, extending measurement capabilities to include digital channel analysis alongside analog measurements. The option enables up to 16 digital channels at 300 MHz with a sampling rate of 2.5 GSa/s.
Key Features
- Up to 16 digital channels for logic analysis
- 300 MHz bandwidth for digital measurements
- 2.5 GSa/s sampling rate
- Two 8-channel logic probes included
- Full MSO functionality integrated into RTB2 oscilloscope
Applications
- Digital and mixed-signal circuit testing
- Protocol analysis on digital signals
- Embedded system debugging
- Power and digital signal correlation
Specifications
| Type | Mixed Signal Option |
| Series | RTB 2 Series |
| Alternate Product Number | 1801.8421.02 |
| Series Compatibility | RTB 2 Series |
