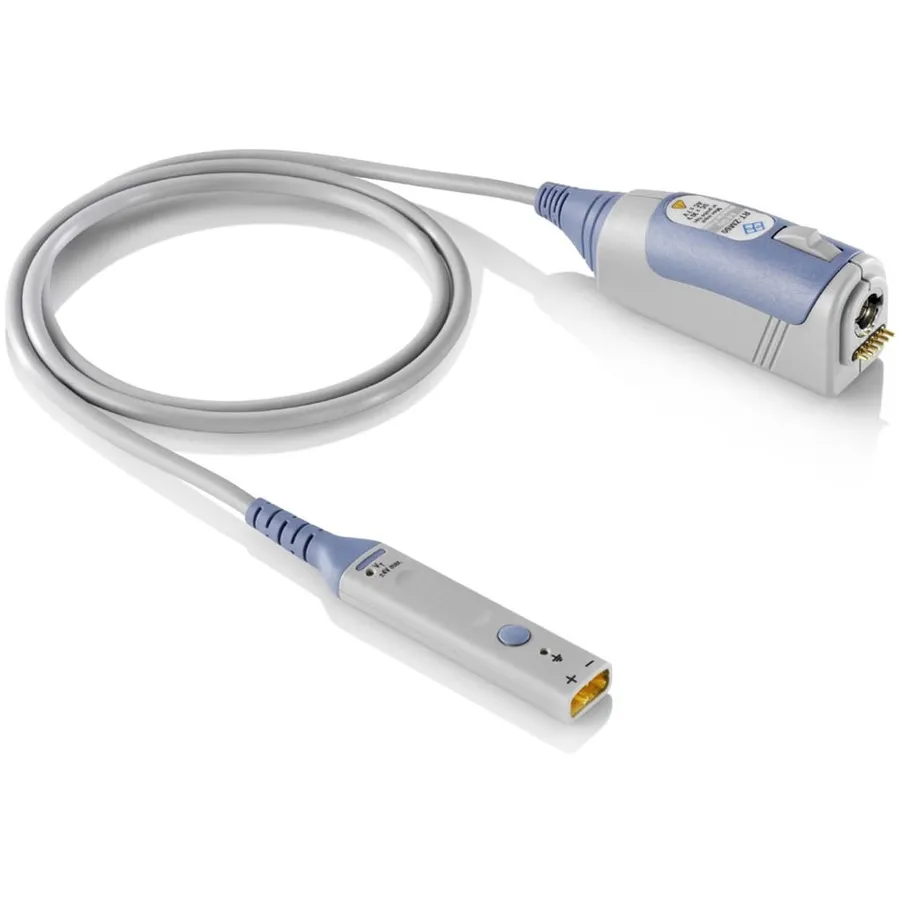

Rohde & Schwarz RT-ZM15 Modular Probe Amplifier Module
Request a quote
Rohde & Schwarz RT-ZM15 is a 1.5 GHz modular probe amplifier with multimode capability and integrated voltmeter for signal analysis on R&S oscilloscopes.
Product details
| Model | RT-ZM15 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZM15 is a 1.5 GHz modular probe amplifier designed for flexible multi-mode signal analysis with R&S RTO and RTE series oscilloscopes. It provides differential, single-ended, and common mode measurement capabilities in a compact modular form factor with integrated signal conditioning and precise voltage measurement.
Key Features
- 1.5 GHz bandwidth for mid-frequency signal acquisition
- MultiMode operation for differential, single-ended, and common mode measurements
- Configurable input impedance: 400 kilohm differential, 200 kilohm single-ended
- 1.2 meter probe cable with modular connectivity
- Integrated voltmeter for direct voltage measurement
- Micro button for oscilloscope control
Applications
- General-purpose analog and digital signal debugging
- Multi-mode circuit measurements and verification
- Mixed-signal applications with simultaneous differential and single-ended probing
Specifications
| Type | Probe Amplifier Module |
| Series | RT-Zxx Series |
| Alternate Product Number | 1800.4700.02 |
