Rohde & Schwarz MXO5C-K36 Frequency Response Analysis License Key
Request a quote
Frequency response analysis (FRA) license key for Rohde & Schwarz MXO5C; measures control loop stability, PSRR, and device response to 100 MHz.
Product details
| Model | MXO5C-K36 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview

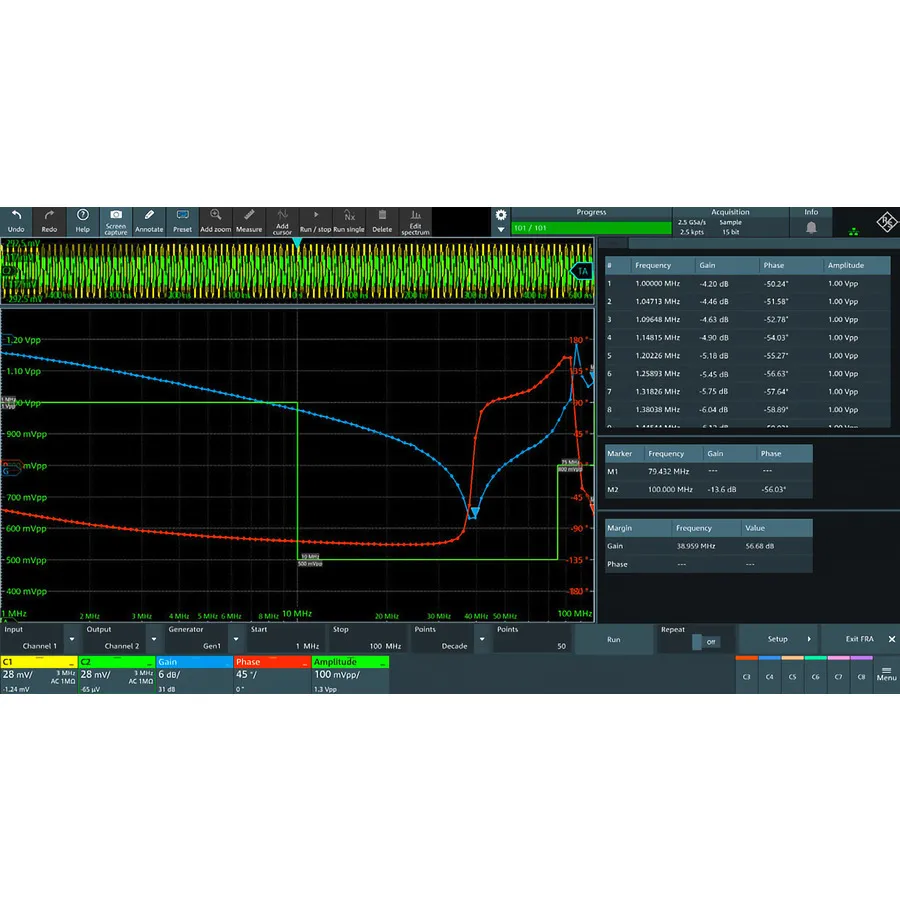

The Rohde & Schwarz MXO5C-K36 is a frequency response analysis (FRA) license key that adds advanced low-frequency analysis capabilities to the MXO5C oscilloscope. It enables engineers to characterize device behavior across frequency ranges from 10 mHz to 100 MHz by measuring the ratio of stimulus to output signals, providing logarithmic gain and phase information for control systems, filters, and amplifiers.
Key Features
- Frequency response analysis (FRA) license key for MXO5C
- Built-in waveform generator for stimulus signal creation (10 mHz to 100 MHz)
- Measures control loop response (CLR) and power supply rejection ratio (PSRR)
- Logarithmic gain and phase plotting for device characterization
Applications
- Passive filter and amplifier circuit characterization
- Switch-mode power supply control loop analysis
- Power supply rejection ratio (PSRR) measurement
- Control system stability assessment
Specifications
| Type | Frequency Response Analysis |
| Series | MXO5C Series |
| Alternate Product Number | 1802.3146.03 |
