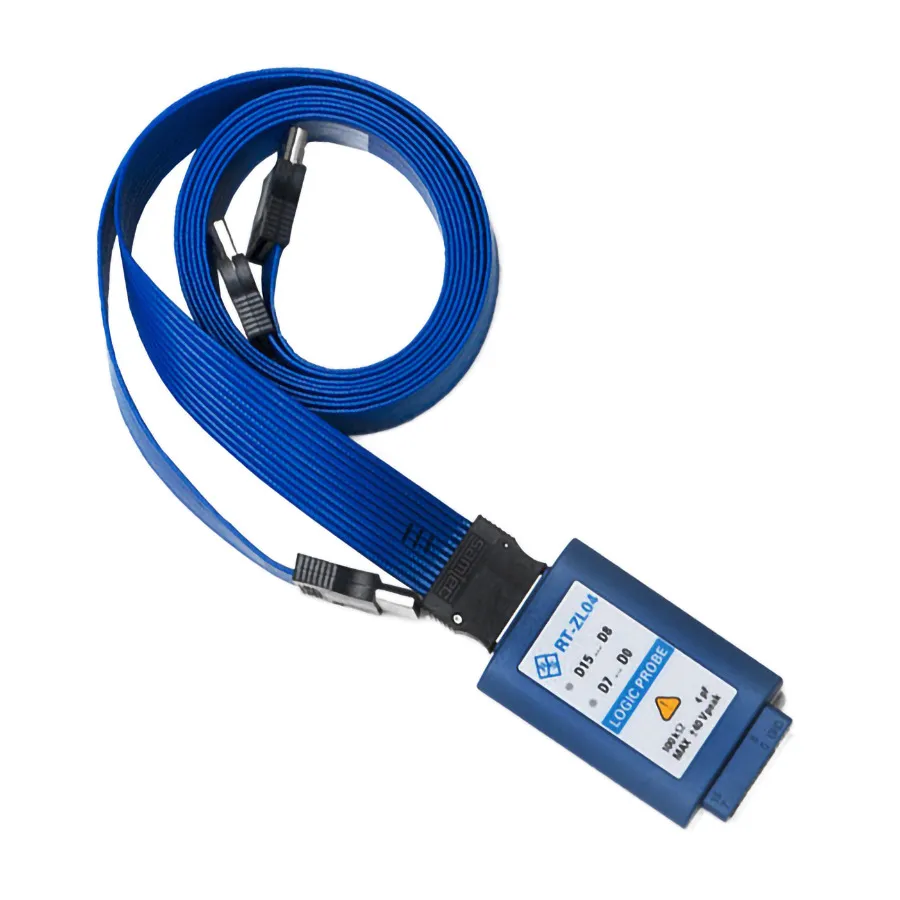

Rohde & Schwarz MXO5C-B1 Mixed Signal Option
Request a quote
Rohde & Schwarz MXO5C-B1 adds 16 digital logic channels to MXO5C series with 2× RT-ZL04 probes for mixed signal analysis of low-speed serial protocols.
Product details
| Model | MXO5C-B1 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO5C-B1 is a mixed signal option that adds 16 digital logic channels to the MXO 5C series oscilloscope. Supplied with two RT-ZL04 logic probes, it enables simultaneous analog and digital signal analysis on a single platform. This mixed signal capability is optimized for analyzing low-speed serial protocols and gaining deep insights into bus-level events.
Key Features
- 16 digital logic channels via 2× RT-ZL04 probes
- Mixed signal analysis combining analog and digital signals
- Optimized for low-speed serial protocol analysis (I2C, SPI, UART, RS-232, RS-422, RS-485)
- Protocol trigger and decode integration with serial bus options
- Deep protocol insights including start, address, and data events
- Integrated logic analysis with high-resolution signal capture
Specifications
| Type | Mixed Signal Option |
| Series | MXO5C Series |
| Alternate Product Number | 1802.3023.02 |
