Rohde & Schwarz MXO5-K36 Frequency Response Analysis Option
Request a quote
Rohde & Schwarz MXO5-K36 frequency response analysis option for characterizing filters, amplifiers, and control loops with stimulus generation from 10 mHz to 100 MHz.
Product details
| Model | MXO5-K36 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO5-K36 frequency response analysis (FRA) option provides low-frequency response analysis capabilities for MXO5 oscilloscopes. It enables precise characterization of electronic devices including passive filters, amplifier circuits, and control loop systems by measuring the frequency-dependent behavior of devices under test.
Key Features
- Built-in waveform generator for stimulus signals from 10 mHz to 100 MHz

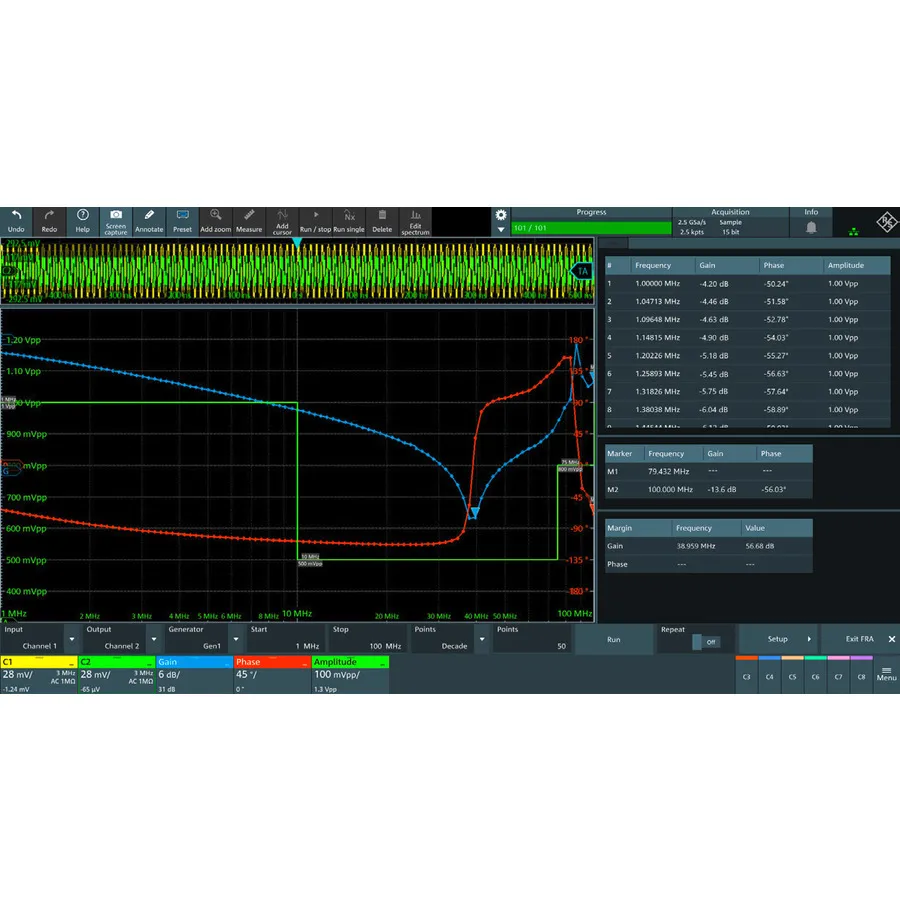

- Automatic frequency response plotting with logarithmic gain and phase measurements
- Control loop response (CLR) and power supply rejection ratio (PSRR) measurement capability
- Rapid characterization of device behavior across the frequency spectrum
Applications
- Passive filter design and characterization
- Amplifier circuit analysis and optimization
- Switch-mode power supply control loop response measurement
- Power supply rejection ratio (PSRR) analysis
- Closed-loop stability assessment
Specifications
| Type | Frequency Response Analysis |
| Series | MXO5 Series |
| Alternate Product Number | 1802.1943.03 |
| Series Compatibility | MXO5 Series |
