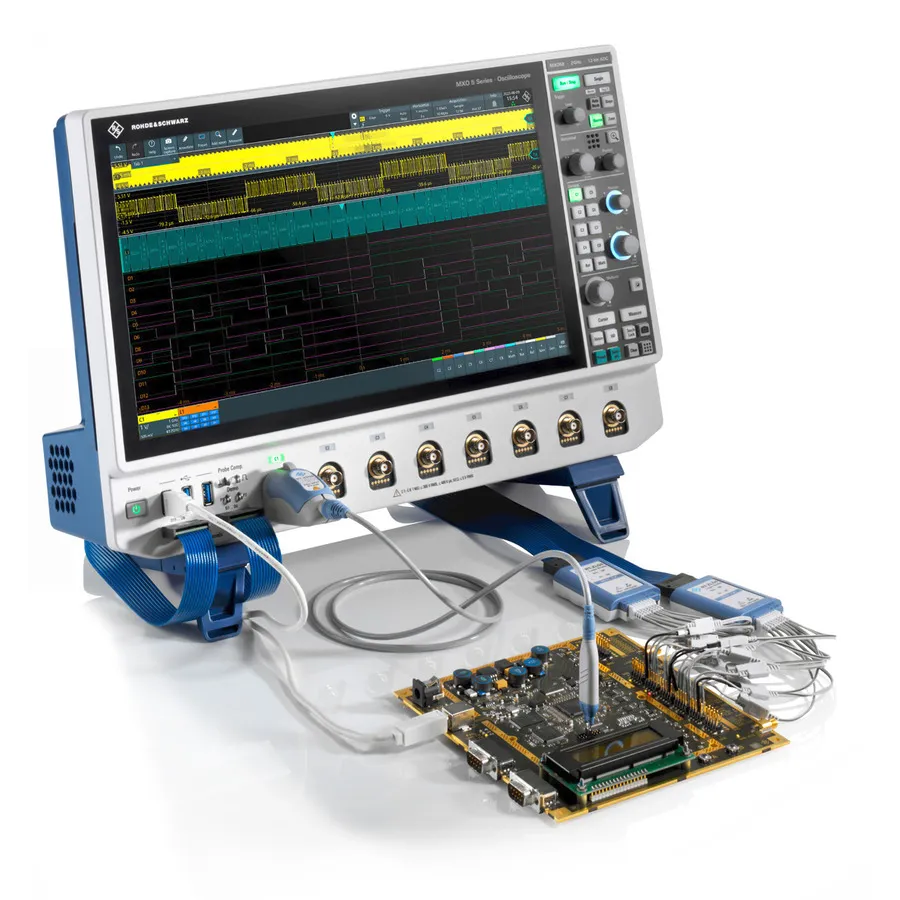

Rohde & Schwarz MXO5-B1 Mixed Signal Option
Request a quote
Rohde & Schwarz MXO5-B1 is a mixed-signal option for MXO5 oscilloscopes, including an MSO license key and two RT-ZL04 logic probes for 16-channel digital signal analysis.
Product details
| Model | MXO5-B1 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
Rohde & Schwarz MXO5-B1 is a mixed-signal option for the MXO5 Series oscilloscopes, adding comprehensive digital channel capabilities to the instrument. The option includes an MSO (Mixed Signal Oscilloscope) license key and two R&S RT-ZL04 logic probes, enabling simultaneous capture and analysis of both analog and digital signals with up to 16 digital channels.
Key Features
- MSO license key for mixed-signal measurement capability
- Two R&S RT-ZL04 logic probes for 16 digital channels
- Simultaneous analog and digital signal capture
- Low-speed serial protocol analysis (SPI, I2C)
- Protocol trigger and decode capabilities for serial bus events
- Integrated logic analysis with high-resolution signal capture
Applications
- Embedded systems debugging and verification
- Serial protocol analysis (I2C, SPI)
- Mixed analog-digital circuit testing
- Digital signal integrity analysis
Included Accessories
- MSO license key
- 2x R&S RT-ZL04 logic probes
Specifications
| Type | Mixed Signal Option |
| Series | MXO5 Series |
| Alternate Product Number | 1802.0660.02 |
| Series Compatibility | MXO5 Series |
