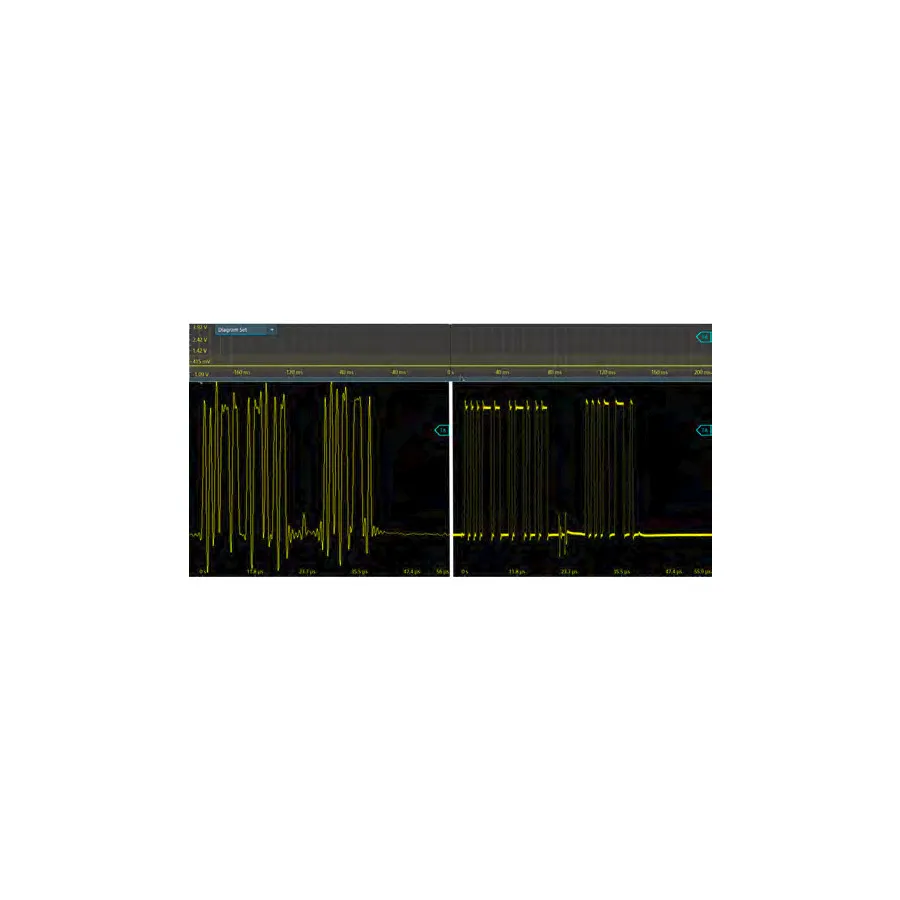

Rohde & Schwarz MXO4-B108 Memory Option
Request a quote
Rohde & Schwarz MXO4-B108 memory option upgrades MXO 4 oscilloscopes to 800 Mpoints per channel with memory interleaving.
Product details
| Model | MXO4-B108 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO4-B108 is a memory upgrade option for MXO 4 series oscilloscopes. It extends the standard memory from 400 Mpoints per channel to 800 Mpoints through hardware interleaving, enabling longer capture intervals while maintaining fast sample rates. This capability is particularly valuable for analyzing extended events such as power up/down sequences and complex bus communications.
Key Features
- Memory extension from 400 Mpoints to 800 Mpoints per channel
- Hardware-based memory interleaving
- Support for up to 1,000,000 segments per acquisition
- Support for up to 1,000,000 sequential acquisitions
- Extended record length without sample rate reduction
Applications
- Long-duration power-on and power-off event analysis
- Extended protocol decoding and message capture
- Statistical analysis and multi-event data logging
Specifications
| Type | Memory Option |
| Series | MXO4 Series |
| Alternate Product Number | 1335.5772.02 |
| Series Compatibility | MXO4 Series |
