Rohde & Schwarz MXO3-K31 Power Analysis Option
Request a quote
Rohde & Schwarz MXO3-K31 measures power quality, harmonics, and switching loss in power devices, supporting EN 61000-3-2, MIL-STD-1399, and RTCA DO-160 standards.
Product details
| Model | MXO3-K31 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO3-K31 is a power analysis option for the MXO 3 series oscilloscope, enabling comprehensive power quality measurements and advanced analysis of AC circuits. It provides engineers with automated tools to characterize power behavior, identify harmonic distortion, and validate switching device performance against international standards.
Key Features
- Power quality analysis: active, apparent, and reactive power measurement
- Crest factor and phase angle calculation

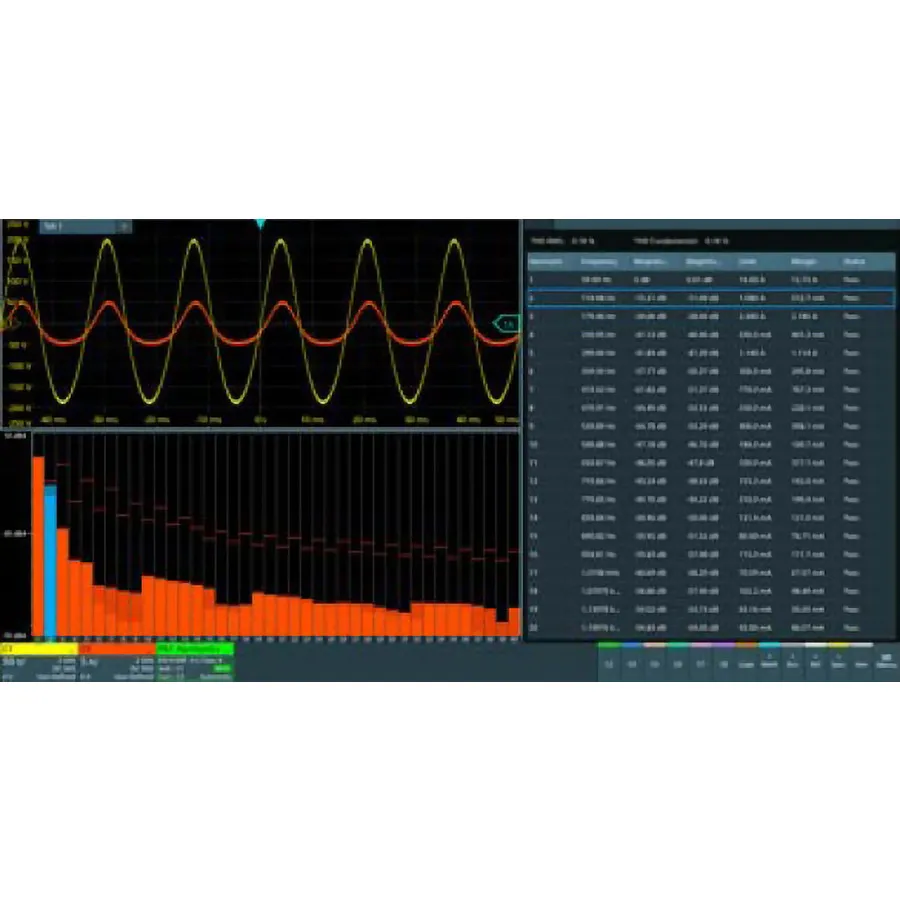

- Current harmonics analysis compliant with EN 61000-3-2 classes A, B, C, D
- THD RMS and fundamental measurements aligned with MIL-STD-1399 and RTCA DO-160
- Automated switching loss measurement with turn-on, turn-off, conduction, and non-conduction region analysis
- Turn-on and turn-off time measurement for device state transition analysis
- Concurrent analysis of three pairs of voltage and current sources
Applications
- AC power supply quality verification and troubleshooting
- Power device characterization and validation
- Harmonic compliance testing for power conversion equipment
- Switch-mode power supply (SMPS) analysis and optimization
Specifications
| Type | Power Analysis Option |
| For Use With | MXO 3 Series |
| Series | MXO 3 Series |
| Alternate Product Number | 1335.2880.03 |
