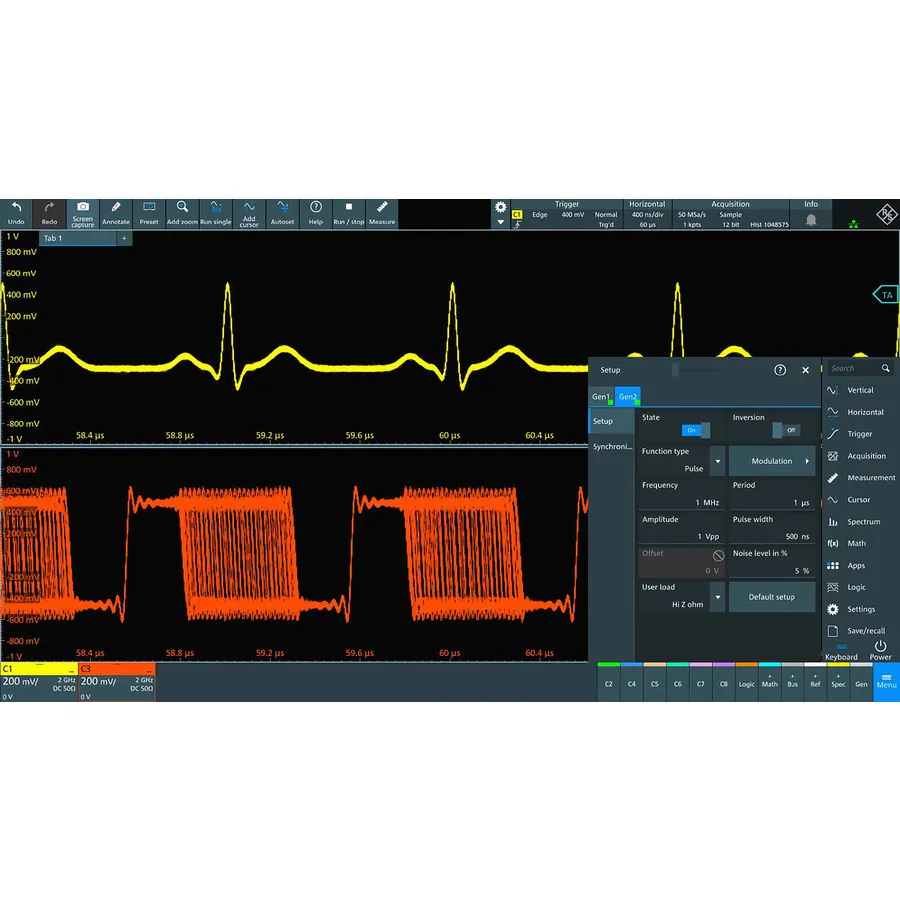

Rohde & Schwarz MXO3-B6 Arbitrary Waveform Generator Option
Request a quote
Rohde & Schwarz MXO3-B6 is a 50 MHz integrated arbitrary waveform generator with 14-bit resolution, 312.5 Msample/s sampling rate, and support for function, modulation, and noise generation.
Product details
| Model | MXO3-B6 |
| Manufacturer | Rohde & Schwarz |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO3-B6 is an integrated arbitrary waveform generator option for the MXO 3 series oscilloscope. It provides a 50 MHz waveform generator with 14-bit vertical resolution and 312.5 Msample/s sampling rate, delivering precise and configurable signal generation for hardware prototyping and educational applications.
Key Features
- Analog output on 1 channel with bandwidth from 1 mHz to 50 MHz
- Arbitrary waveform length from 1 sample to 128 ksamples
- Sample rate of 312.5 Msample/s with 14-bit vertical resolution
- Multiple operating modes: function generator, arbitrary waveform generator, modulation, frequency sweep, and noise generation
Waveforms and Modulation
- Waveforms: DC, sine, square/pulse, triangle, ramp, inverse ramp, sinc, and arbitrary
- Modulation types: AM, FM, FSK, and PWM
- Frequency sweep capability for frequency-dependent testing
- Noise generation for stimulus and analysis
Applications
- Hardware prototyping and circuit validation
- Educational demonstrations and classroom usage
- Device testing and characterization
- Signal generation for various engineering applications
Specifications
| Type | Arbritary Waveform Generator |
| For Use With | MXO 3 Series |
| Series | MXO 3 Series |
| Alternate Product Number | 1335.2850.03 |
