RIGOL DS70000-EMBDA Embedded Serial Bus Trigger and Analysis
Request a quote
RIGOL DS70000-EMBDA is an embedded protocol analysis module for DS70000 oscilloscopes, supporting RS232, UART, I2C, and SPI trigger and decoding.
Product details
| Model | DS70000-EMBDA |
| Manufacturer | RIGOL |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview

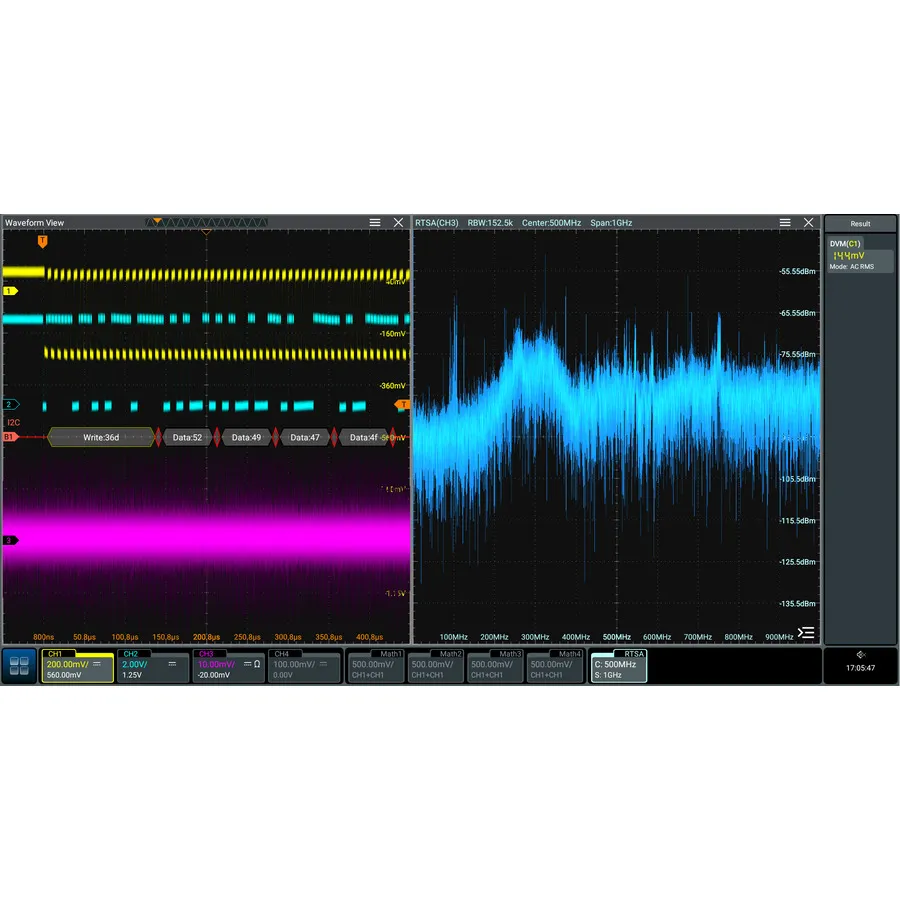

The RIGOL DS70000-EMBDA is an embedded protocol trigger and analysis option for the DS70000 series high-end digital oscilloscopes. It enables engineers to capture and analyze embedded communication protocols (RS232/UART, I2C, SPI) with industry-leading memory depth, waveform capture rate, and vertical resolution.
Key Features
- Protocol trigger and analysis of RS232/UART, I2C, and SPI
- Analog channel trigger and decoding support
- Waveform recording and pass/fail mask testing integration
Applications
- Embedded system debugging and development
- Serial communication protocol verification
- Microcontroller interface analysis
Specifications
| Series | DS70000 Series |
