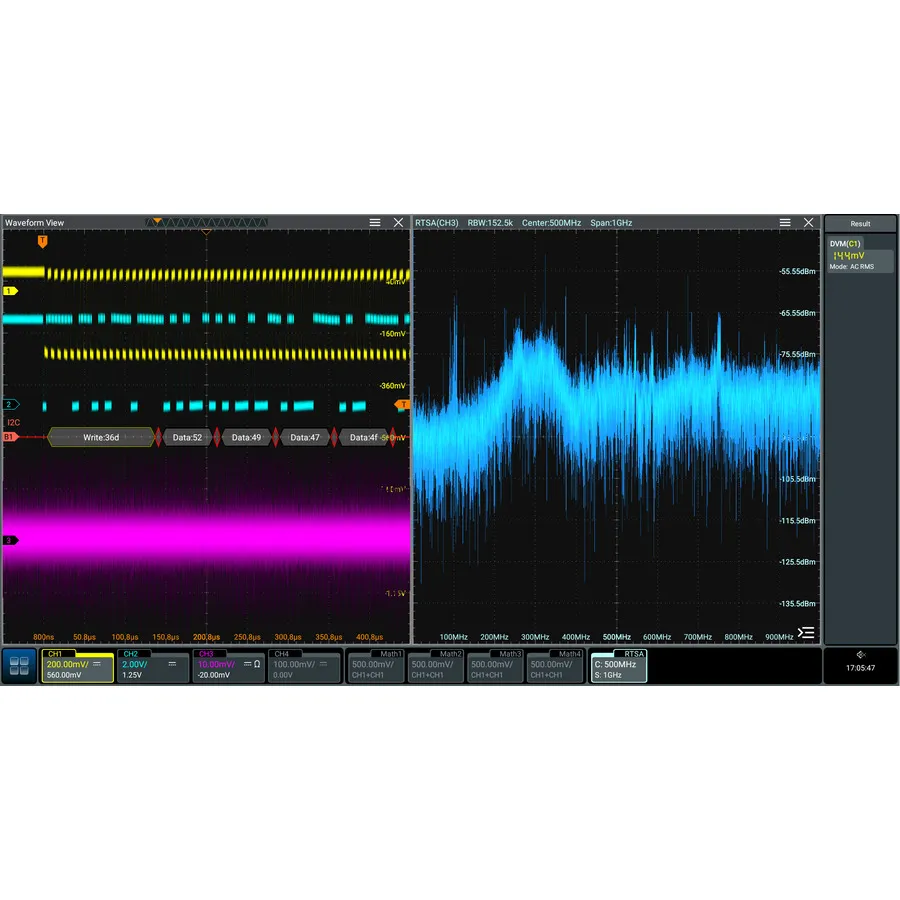

RIGOL DS70000-AUTOA Automotive Serial Bus Trigger and Analysis
Request a quote
RIGOL DS70000-AUTOA is an automotive protocol analysis module for DS70000 oscilloscopes, supporting CAN, CAN-FD, LIN, and FlexRay trigger and decoding.
Product details
| Model | DS70000-AUTOA |
| Manufacturer | RIGOL |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The RIGOL DS70000-AUTOA is an automotive protocol trigger and analysis option for the DS70000 series high-end digital oscilloscopes. It enables engineers to capture and analyze automotive communication protocols (CAN, CAN-FD, LIN, FlexRay) with industry-leading memory depth, waveform capture rate, and vertical resolution.
Key Features
- Protocol trigger and analysis of CAN, CAN-FD, LIN, and FlexRay
- Analog channel trigger and decoding support
- Waveform recording and pass/fail mask testing integration
Applications
- Automotive databus debugging and validation
- Vehicle communication network development
- CAN and LIN protocol verification
Specifications
| Series | DS70000 Series |
