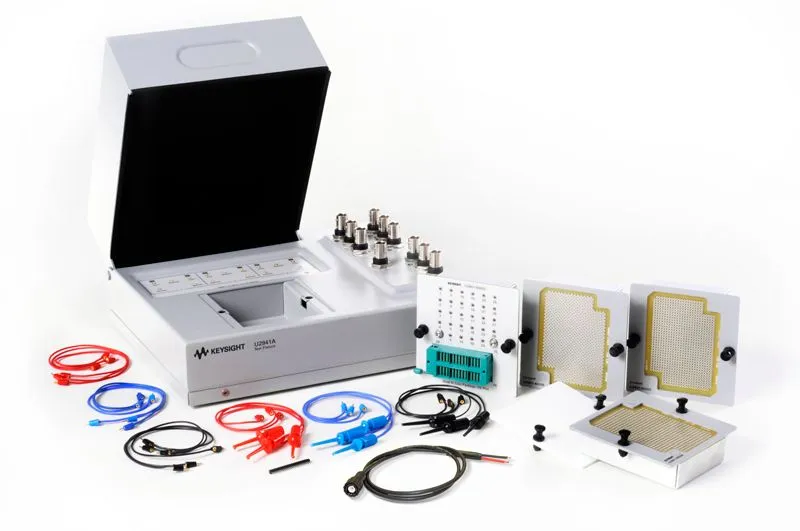

Keysight U2941A Parametric Test Fixture
Request a quote
Keysight U2941A parametric test fixture for SMT and DIP IC testing. Supports 3 input channels, includes 5 socket modules, and Parametric Measurement Manager software.
Product details
| Model | U2941A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight U2941A is a parametric test fixture designed to complement the U2722A USB source measure unit for testing semiconductor components including surface-mount (SMT) and dual-in-line (DIP) integrated circuits. The fixture supports comprehensive component characterization with automated measurement and data logging capabilities.
Key Features
- 3 input channels with common ground
- 5 socket modules supporting various pin configurations and pitch sizes
- Bundled Parametric Measurement Manager software for setup and data recording
- Compatible with U2722A USB source measure unit
Applications
- Semiconductor component parametric testing
- Surface-mount (SMT) device characterization
- Dual-in-line (DIP) IC testing
Specifications
| Input Channels | 3 |
| Voltage Rating | 60 VDC |
| Current Rating | 1 A |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 20% to 85% RH non-condensing |
| Dimensions | 250 mm × 200 mm × 120 mm (W×D×H) |
| Weight | 1.33 kg |
