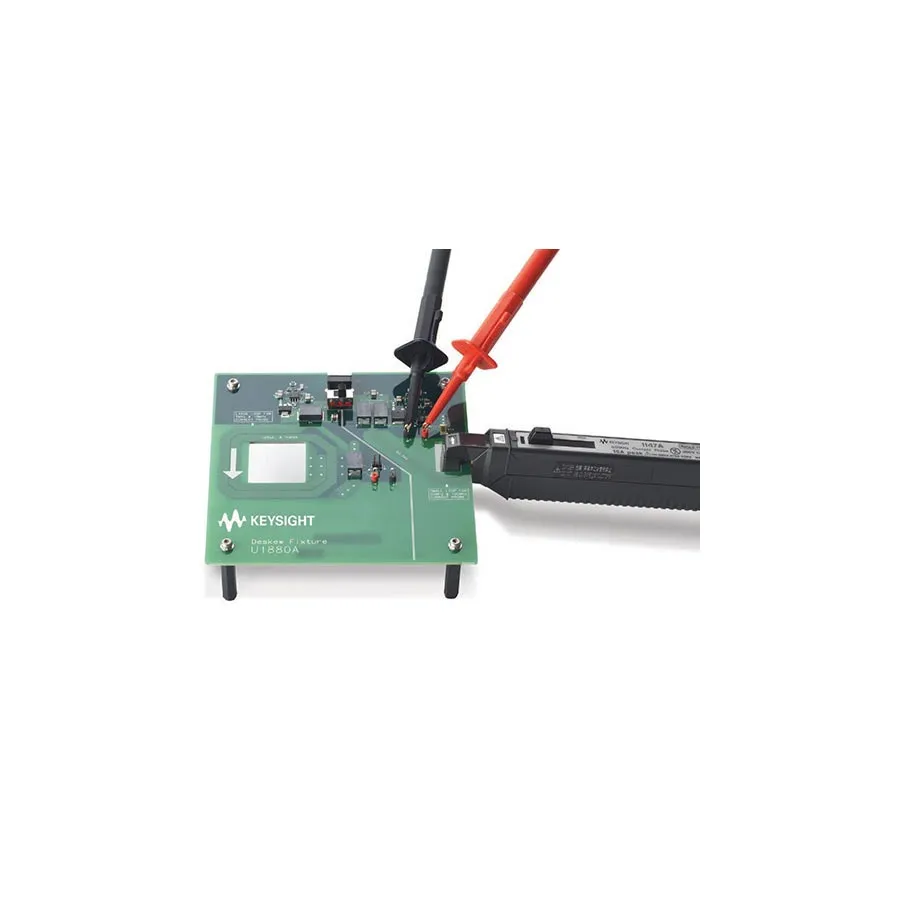

Keysight U1880A Deskew Fixture
Request a quote
Keysight U1880A deskew fixture enables accurate power measurements by equalizing voltage and current probe timing delays using USB connection.
Product details
| Model | U1880A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight U1880A deskew fixture is an essential tool for accurate power measurements on oscilloscopes. It eliminates timing delays between voltage and current probes, a critical step for precision power analysis. The fixture drives both voltage and current probes with the same pulse signal via USB, enabling automatic deskewing through power measurement software or manual oscilloscope adjustment.
Key Features
- USB connection to oscilloscope front panel or PC
- Automatic deskewing with one-click software operation
- Compatible with Keysight N2790A to N2793A differential probes
- Saves deskew values for repeated use
- Deskew accuracy improves with higher bandwidth probes
Applications
- Power measurement and calculation on oscilloscopes
- Probe calibration and synchronization
- Accurate waveform timing analysis
Specifications
