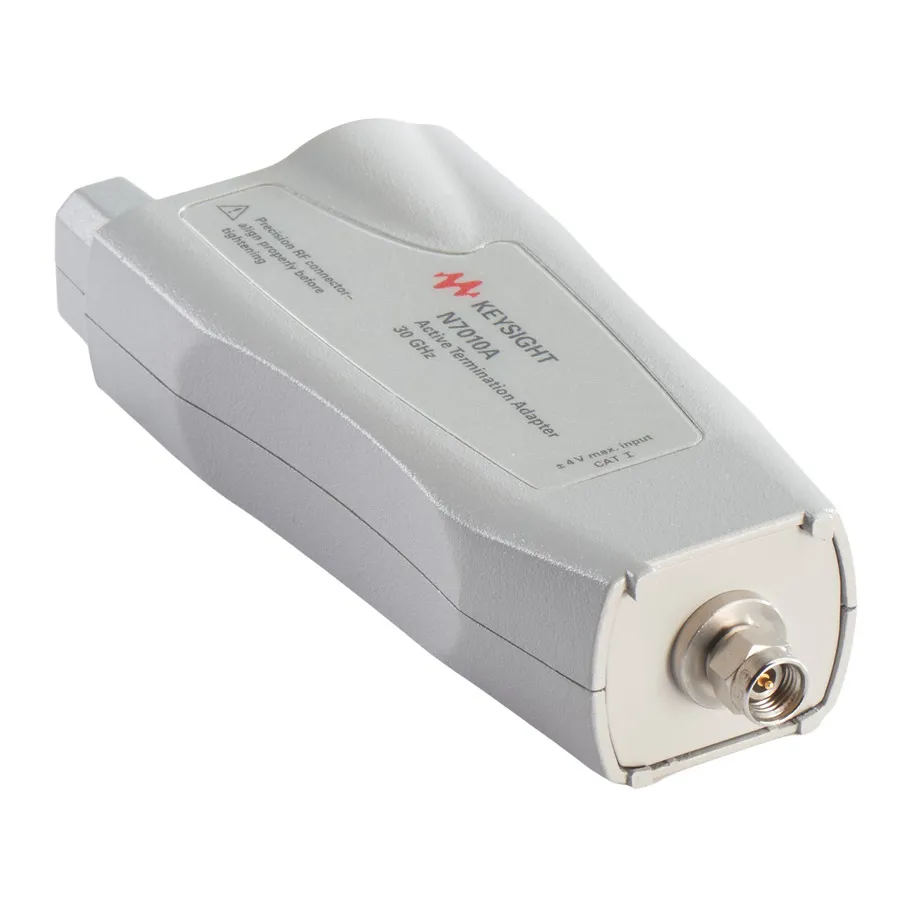

Keysight N7010A Active Termination Adapter
Request a quote
Keysight N7010A 30 GHz single-ended active termination adapter with adjustable termination voltage and low noise performance for high-speed signal applications.
Product details
| Model | N7010A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The N7010A is a 30 GHz single-ended active termination adapter featuring a user-adjustable common termination voltage and extremely low noise performance. Designed for high-speed signal measurement and termination, it addresses applications requiring low attenuation and precision termination voltage control.
Key Features
- 30 GHz bandwidth with single-ended active termination capability
- Supports 2.92 mm, 3.5 mm, and SMA cable connectors
- Low attenuation (1.16:1 ratio) for high signal-to-noise ratio measurements
- Adjustable termination voltage (VTERM) from -4.0 V to +4.0 V
- Oscilloscope-controlled termination for automatic voltage management
Applications
- HDMI 2.0 signal testing
- DisplayPort signal verification
- MIPI M-PHY Gear 3/4 protocol measurement
- High-speed single-ended signal termination
Specifications
