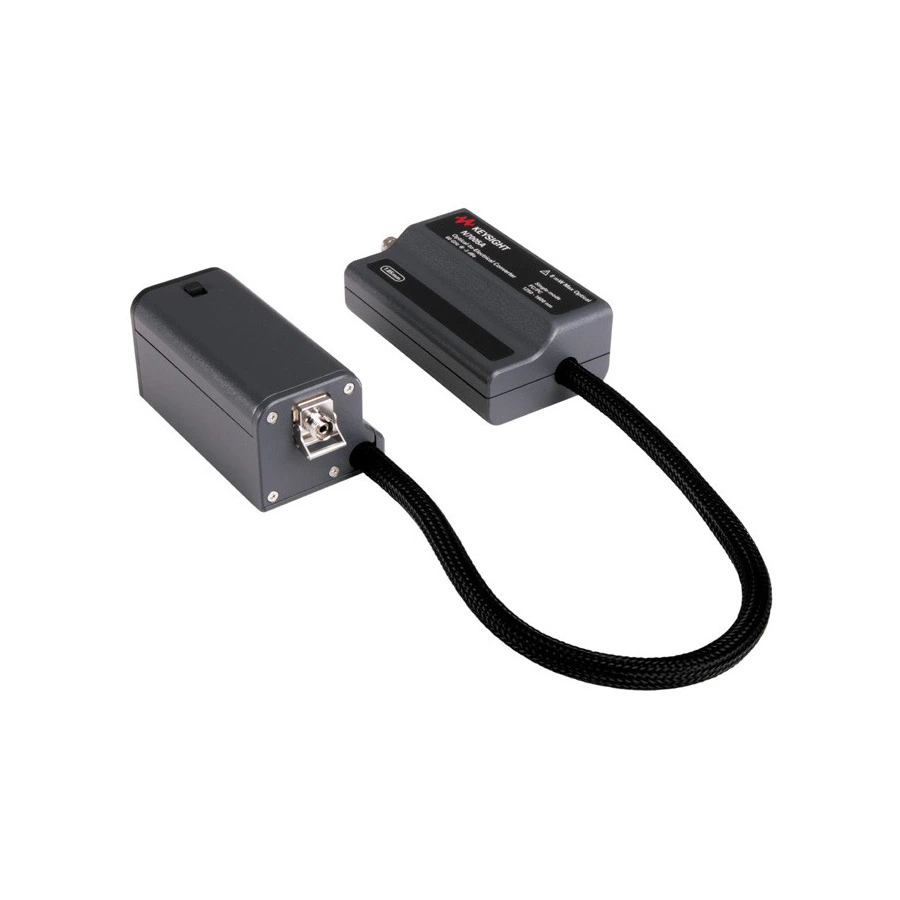

Keysight N7005A Single-Mode 60 GHz Optical-to-Electrical Converter
Request a quote
Keysight N7005A is a single-mode 60 GHz optical-to-electrical converter with PAM4 measurement capability for UXR oscilloscopes and high-speed optical signal characterization.
Product details
| Model | N7005A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N7005A is a high-sensitivity optical-to-electrical converter designed for direct conversion of high-speed optical signals into electrical signals for measurement with Infiniium UXR real-time oscilloscopes. It supports PAM4 signal analysis and optical characterization up to 56 Gbaud.
Key Features
- 60 GHz typical bandwidth (-3 dBe, electrical)
- Single-mode input supporting 9/125 μm fiber with 1250-1600 nm wavelengths (includes 1310 nm and 1550 nm)
- PAM4 measurement capability with FlexDCA software support and built-in optical measurement features
- Flat frequency response up to 60 GHz or 4th order Bessel Thomson response with 70 GHz Brickwall
- Compatible with Infiniium UXR oscilloscopes (software v10.25+) with AutoProbe III interface (≥40 GHz)
Applications
- High-speed optical signal characterization and troubleshooting
- PAM4 optical stream analysis
- System-level optical testing and debugging
- Optical communication signal integrity verification
