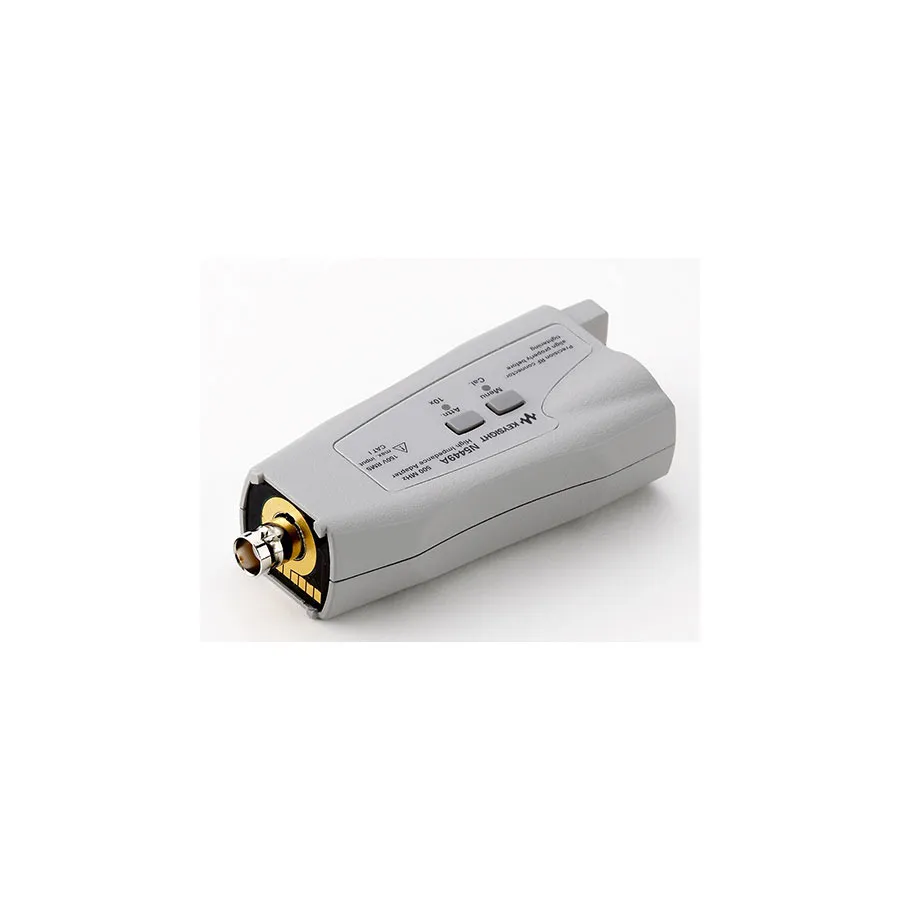

Keysight N5449A High Impedance Adapter
Request a quote
Keysight N5449A high impedance adapter bridges 1 MΩ AutoProbe I interface to 50 Ω AutoProbe II, enabling legacy probe compatibility with modern Infiniium oscilloscopes.
Product details
| Model | N5449A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N5449A high impedance adapter enables connection of AutoProbe I high-impedance probes to Infiniium oscilloscopes that require AutoProbe II interface. This adapter allows users to leverage existing AutoProbe I probes with modern high-performance Infiniium V-Series, 90000 X-Series, 90000 Q-Series, and Z-Series oscilloscopes.
Key Features
- Input: 1 MΩ AutoProbe I interface
- Output: 50 Ω AutoProbe II interface
- Includes N2873A 500 MHz 10:1 passive probe
- Supports legacy high-impedance passive probes, 1147B, N2893A AC/DC current probe, and N2790A high-voltage differential probe
Compatible Oscilloscopes
- Infiniium V-Series
- Infiniium 90000 X-Series
- Infiniium 90000 Q-Series
- Infiniium Z-Series
Specifications
