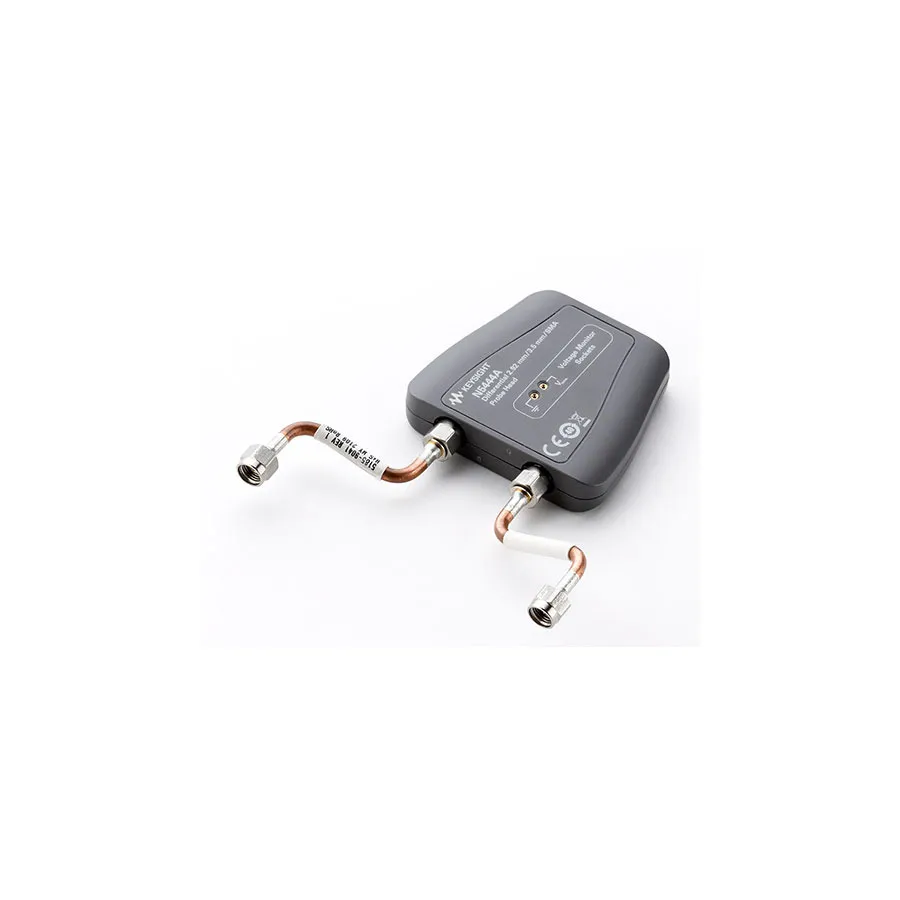

Keysight N5444A InfiniiMax III SMA Probe Head
Request a quote
Keysight N5444A InfiniiMax III SMA probe head delivers 28 GHz bandwidth with variable termination voltage and supports dual 2.92 mm, 3.5 mm, or SMA cable connections.
Product details
| Model | N5444A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N5444A InfiniiMax III SMA probe head provides 28 GHz bandwidth and enables differential measurements by connecting two 2.92 mm, 3.5 mm, or SMA cables to a single oscilloscope channel. It features configurable termination voltage for various signal standards that require termination to a voltage other than ground.
Key Features
- 28 GHz typical bandwidth
- 18.8 psec rise time (10%-90%, with N2803A)
- Dual connector support: 2.92 mm, 3.5 mm, and SMA compatible
- Variable termination voltage: ±4 V with 5 mV steps
- DC input resistance: 55 Ω to termination voltage (DC-1 kHz)
- AC input impedance: 50 Ω to 0.909× termination voltage (above 10 kHz)
- Maximum termination current: 80 mA
- Input voltage range: 2.5 Vrms with ±12 V DC to ±2.5 V common mode
Included Accessories
- N5448A 2.92 mm head flex cables (10-inch or 25 cm) for extending cable length
