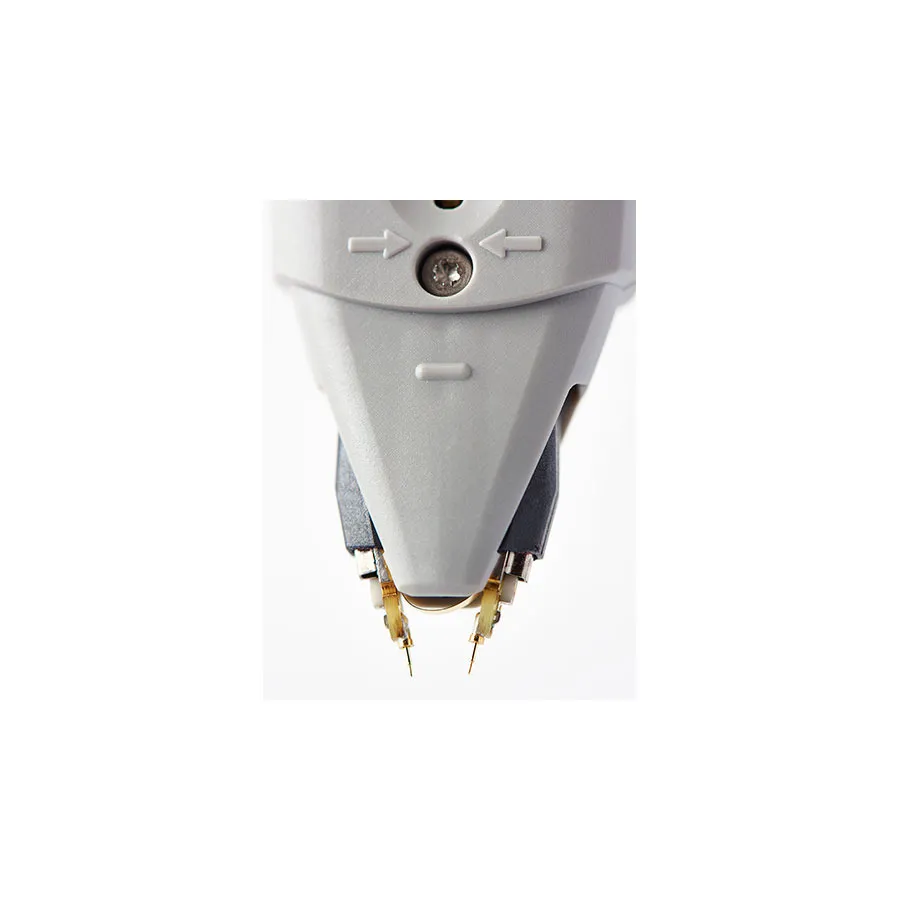

Keysight N2839A InfiniiMax II Differential Browser
Request a quote
Keysight N2839A is an InfiniiMax II differential probe browser head with 12 GHz bandwidth, 0.21 pF input capacitance, 20 replaceable tips, and span adjustment 0–3 mm.
Product details
| Model | N2839A |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N2839A is an InfiniiMax II differential probe browser head designed for high-speed oscilloscope measurements. It provides a hand-held probing solution with solder-in probe head measurement fidelity, making it ideal for measuring high-speed differential or single-ended signals with minimal probe loading.
Key Features
- 12 GHz bandwidth when used with the 1169A amplifier
- Extremely low input capacitance of 0.21 pF for minimal probe loading
- Spring-loaded probe tips for secure connections without soldering
- Thumbwheel-controlled span adjustment from 0 mm to 3 mm
- Comes with 20 replaceable probe tips for durability
- Low-inductance ground spring maintains constant frequency response across span ranges
- Compatible with InfiniiMax I and InfiniiMax II amplifiers
- Includes protective cap and ESD-safe tweezer
Applications
- High-speed differential signal measurements
- Single-ended signal probing at high frequencies
- Hand-held browsing with minimal probe effect
- Circuit characterization and debugging
Included Accessories
- 20 replaceable probe tips
- Protective cap
- ESD-safe tweezer
- Browser head with spring-loaded tips
