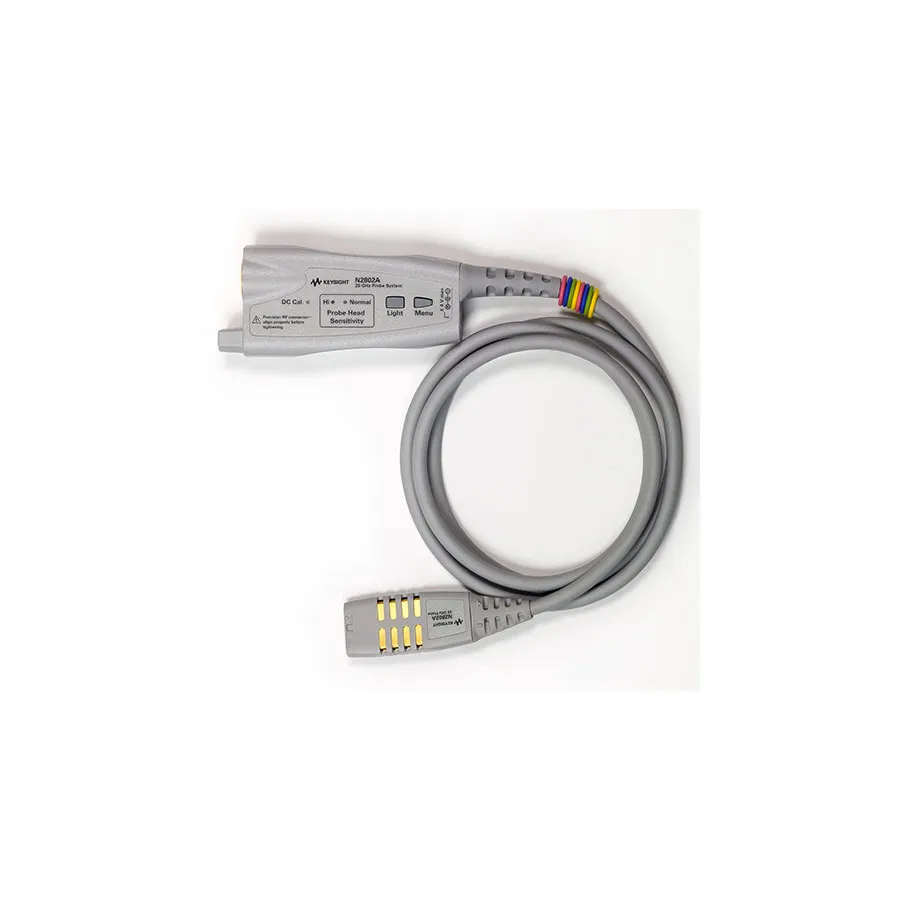

Keysight N2801A InfiniiMax III Probe Amplifier

Overview

The Keysight N2801A is a premium 20 GHz InfiniiMax III series probe amplifier designed for the highest-performance signal acquisition. It delivers full 20 GHz bandwidth directly to the probe tip while maintaining industry-leading noise performance. The amplifier uses advanced 200 GHz fT indium phosphide IC technology with backside ground vias for unmatched signal fidelity and accuracy.

Key Features

• 20 GHz bandwidth to the probe tip
• Rise time: 27.1 psec
• Industry's lowest combined probe and scope system noise
• Highest fidelity and accuracy through advanced loading characteristics
• Probe amplifiers loaded with measured s-parameters for accurate response correction
• Bandwidth upgradable design
• Attenuation ratio: 6:1 (3:1 with 200Ω ZIF tip)
• Input voltage range: 1.6 Vpp (0.8 Vpp with 200Ω ZIF tip)
• Offset range: ±16 V for single-ended signal probing
• DC input resistance: Rdiff = 100 kΩ ±2%, Rse = 50 kΩ ±2%
• Input capacitance: Cdiff = 32 fF, Cse = 48 fF (with ZIF probe head)

Compatible Probe Heads

• N5445A InfiniiMax III Browser
• N5439A InfiniiMax III ZIF Probe Head
• N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA Probe Head
