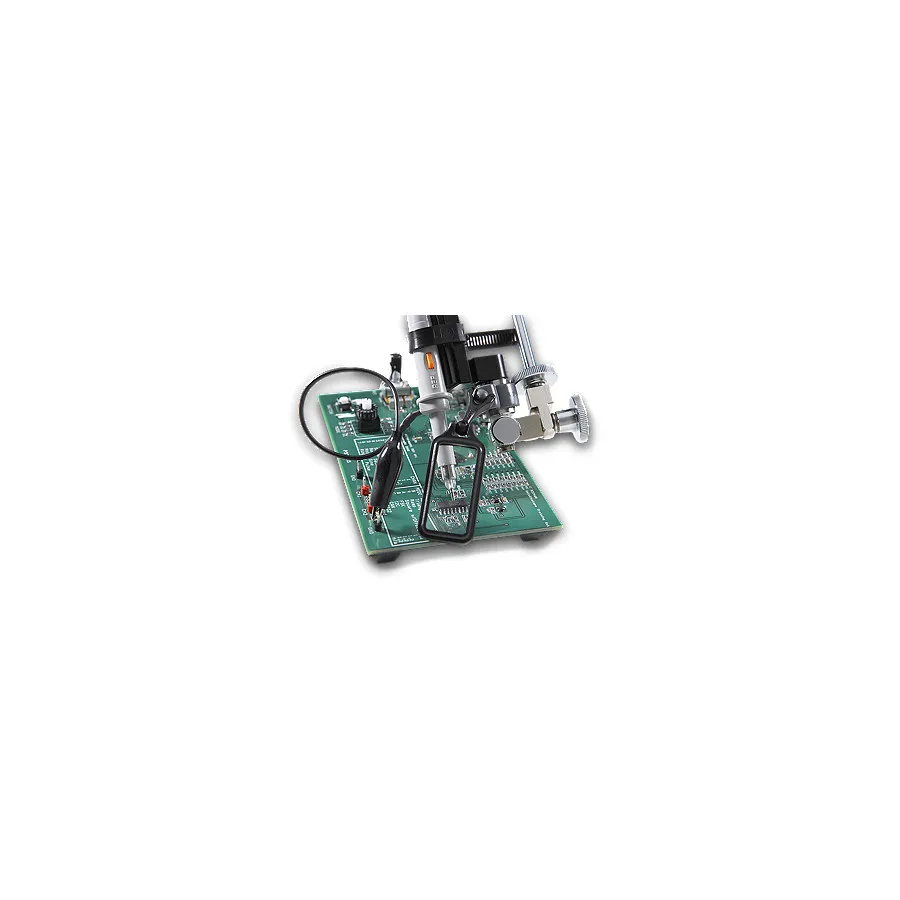

Keysight N2784A Probe Positioner

Overview

The Keysight N2784A is a single-arm probe positioner designed for hands-free X-Y positioning of oscilloscope probes on printed circuit boards and test devices. The articulated arm with hi-mass base provides quick and stable positioning with only a lift-and-drop motion, eliminating the need for manual probe manipulation. A weight stabilization technique maintains constant pressure at the probing point, ensuring the probe stays in position even when the target board is moved or vibrated.

Compatible with most Keysight scope probes, including InfiniiMax single-ended and differential browser probes, as well as probes from other vendors, the N2784A is suitable for debugging, characterization, and test applications where hands-free probing is required.

Key Features

• Single articulated arm with hi-mass base for stable positioning
• Quick and stable X-Y positioning with lift-and-drop motion
• Weight stabilization technique maintains constant probe pressure
• Compatible with Keysight and other vendor scope probes
• Probe holder keeps probe tip in position during board vibration

Applications

• PC board debugging and troubleshooting
• Device characterization and testing
• Hands-free probing in space-constrained environments
