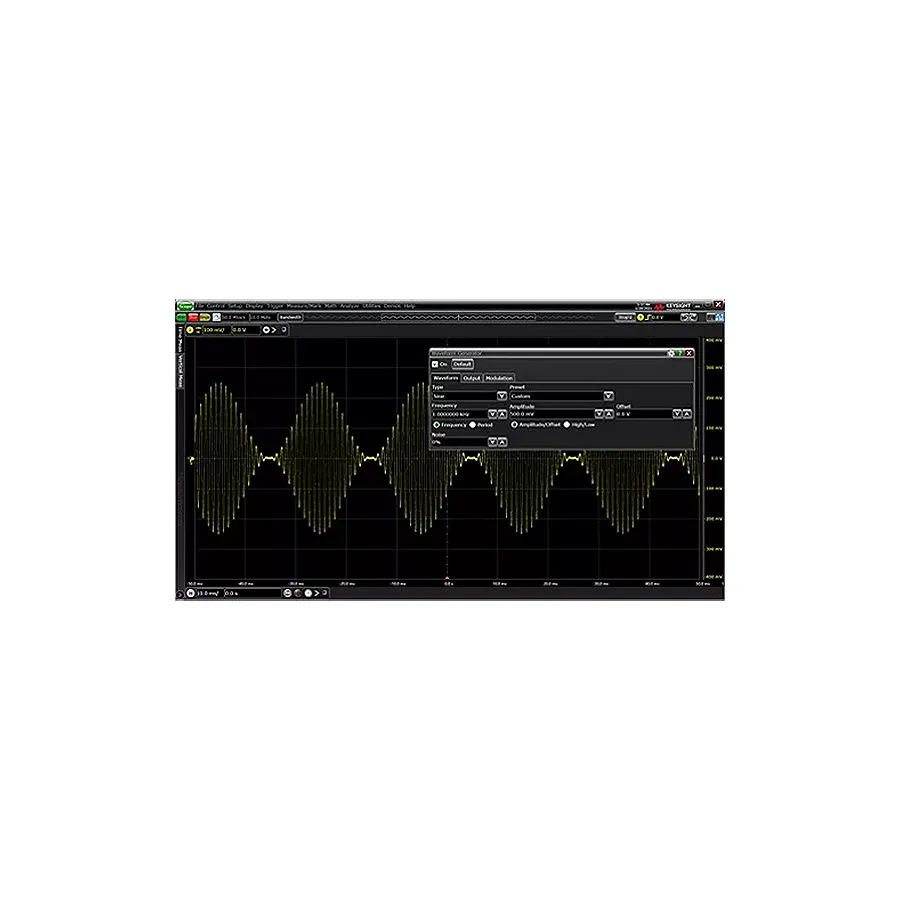

Keysight MXR2WAV 50 MHz Arbitrary Waveform Generator
Request a quote
50 MHz arbitrary waveform generator (AWG) option for Keysight Infiniium MXR-Series oscilloscopes with integrated Bode plotter for frequency response testing.
Product details
| Model | MXR2WAV |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight MXR2WAV is a 50 MHz arbitrary waveform generator (AWG) module for Infiniium MXR-Series oscilloscopes. It enables signal generation, control, testing, and prototyping of complex real-world signals, along with advanced frequency response analysis using the integrated Bode plotter function for comprehensive device characterization.
Key Features
- 50 MHz maximum frequency output with arbitrary waveform generation
- Built-in waveforms: DC, sine, square, pulse, triangle/ramp, noise, sinc, exponential, cardiac, Gaussian pulse, and PRBS
- Modulation capabilities: AM, FM, and FSK from 1 Hz to 20 kHz
- Adjustable DC offset: ±8 VDC (1 MΩ load) or ±4 VDC (50 Ω load)
- Integrated Bode plotter with gain and phase margin measurements, 10 Hz to 50 MHz frequency sweep (1 to 1,000 points)
- 100 µV DC resolution or 3 digits, whichever is higher
Applications
- Device design validation and performance evaluation
- Stress testing and maximum capacity operation
- Frequency response characterization with Bode plots
- Command signal generation and multi-signal simulation
- Multi-channel noise and signal injection testing
- Prototype and circuit development support
Specifications
