Keysight MXR2RTSA/160 Real-Time Spectrum Analysis and DDC Upgrade
Request a quote
Keysight MXR2RTSA/160 RTSA and DDC upgrade for Infiniium MXR-Series, providing 160 MHz real-time spectrum analysis with optional 6 GHz extension.
Product details
| Model | MXR2RTSA/160 |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview

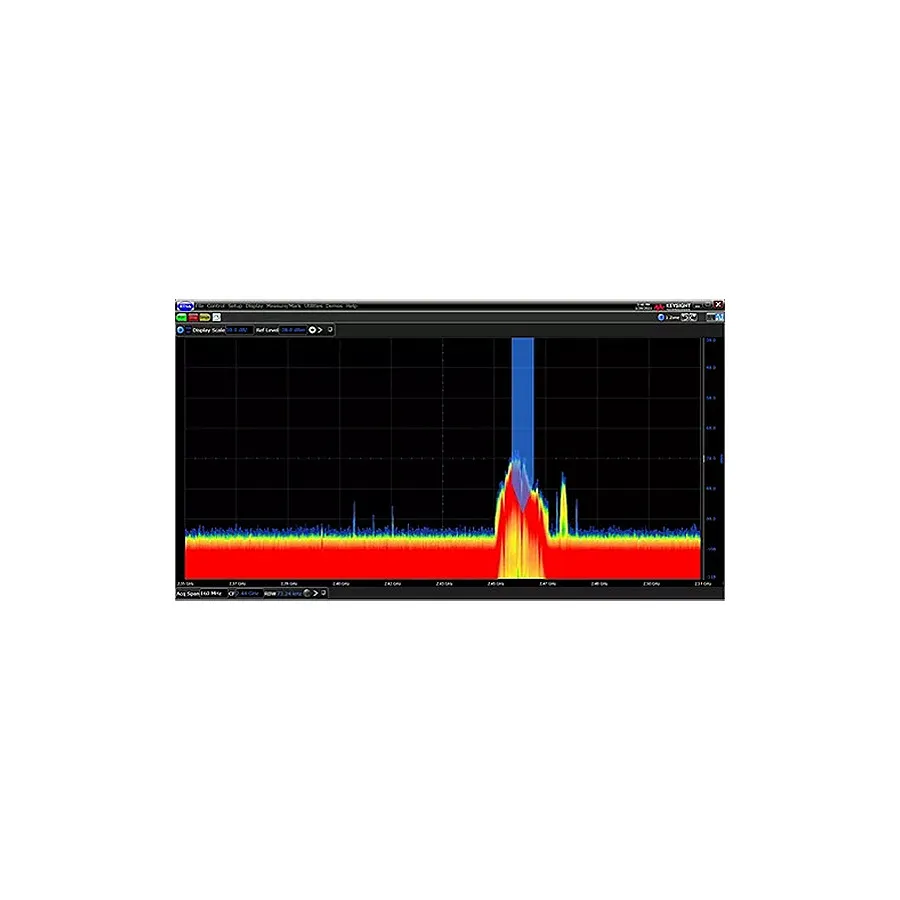

The Keysight MXR2RTSA/160 upgrades Infiniium MXR-Series oscilloscopes with real-time spectrum analysis (RTSA) and digital down-conversion (DDC) capabilities. RTSA provides 160 MHz of analysis bandwidth across 4 or 8 different center frequencies simultaneously, enabling capture of fleeting and transient signals that would be difficult to detect with conventional FFT analysis.
Key Features
- Real-Time Spectrum Analysis (RTSA) with 160 MHz analysis bandwidth
- Digital Down-Conversion (DDC) with up to 2 GHz span
- Support for 4 or 8 independent center frequencies
- Frequency mask trigger for precise signal capture
- Up to 200,000 FFT plots per second for capturing transient signals
- Protocol triggering and decoding capabilities
- Optional frequency extension to 6 GHz with MXR2FRE upgrade
- Cursor measurements and advanced signal analysis
Applications
- ZigBee and 5G FR1 signal analysis
- Bluetooth and transient signal capture
- Time-correlated multi-frequency measurements
- I/Q signal demodulation and analysis
- Advanced signal processing with VSA and MATLAB integration
Specifications
