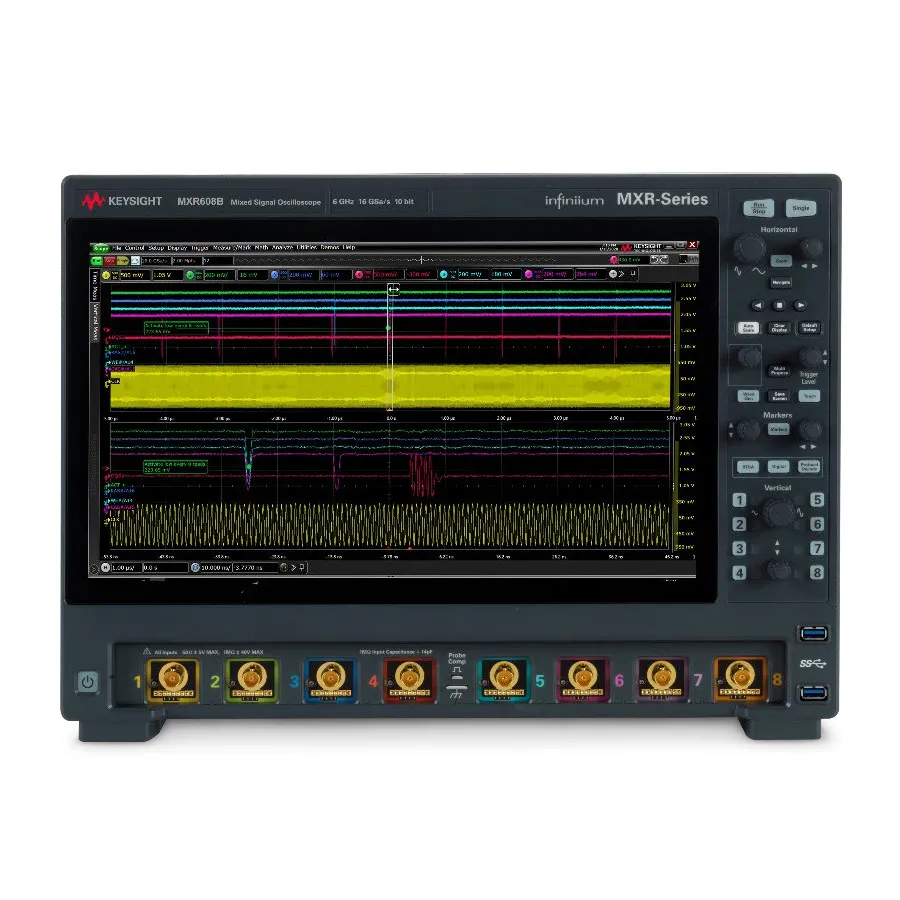

Keysight MXR2MEM/004 Memory Upgrade
Request a quote
Keysight MXR2MEM/004 upgrades Infiniium MXR-Series oscilloscope memory from 200 Megapoints per channel to 1.6 Gigapoints per channel for extended capture.
Product details
| Model | MXR2MEM/004 |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight MXR2MEM/004 is a memory upgrade option for Infiniium MXR and MXR B-Series oscilloscopes. It expands the standard memory from 200 Megapoints per channel to 1.6 Gigapoints per channel, providing eight times the capture capacity. This upgrade enables extended time-domain measurements, complex waveform analysis, and multi-event capture with exceptional record length.
Key Features
- Upgrades memory from 200 Mpts/CH to 1.6 Gpts/CH per channel
- Provides 8x increase in waveform capture capacity
- Compatible with all MXR and MXR B-Series oscilloscopes
- Enables very long time-domain observations
- Increases segmented memory for extensive event captures
- Ideal for low-frequency signal analysis and pattern detection
Applications
- Extended time-domain signal capture for low-frequency analysis
- Multi-event capture with large segmented memory
- Long-duration waveform recording and detailed analysis
- Complex signal pattern detection and deep debugging
- Statistical analysis of signal variations over time
Specifications
