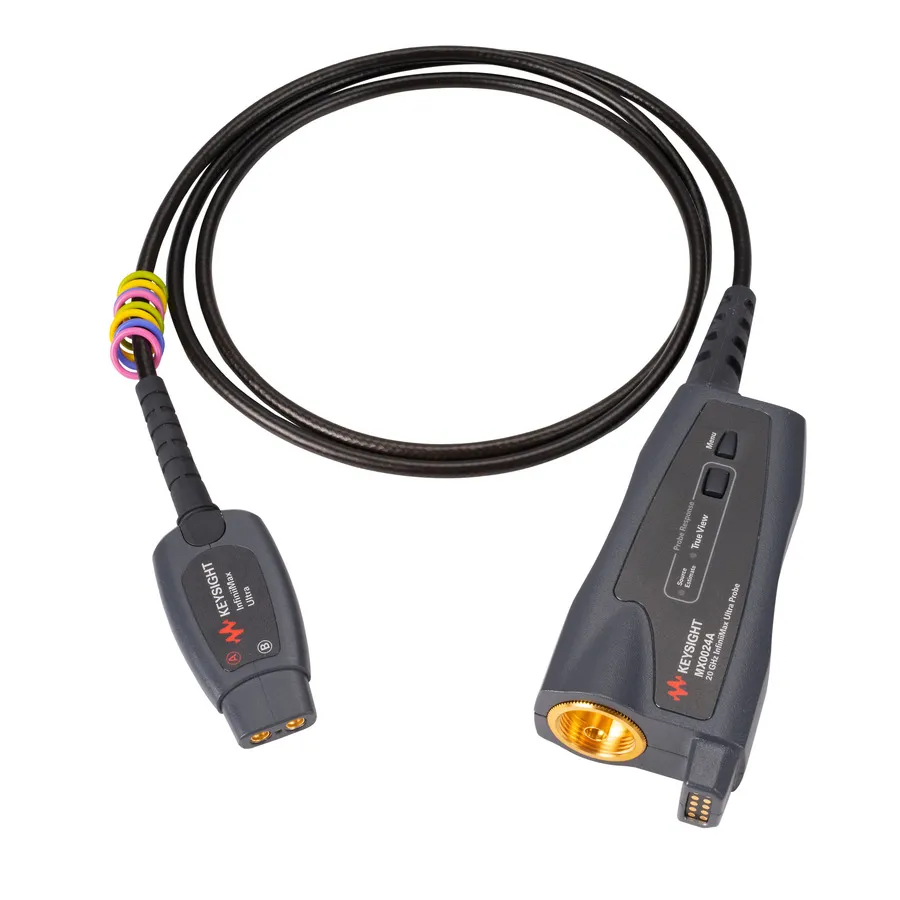

Keysight MX0024A 20 GHz Probe Amplifier

Overview

The Keysight MX0024A is a 20 GHz probe amplifier from the InfiniiMax Ultra Series, designed for high-speed signal measurement and validation. It enables measurement of differential, single-ended, and common mode signals with a single probe tip, providing the lowest loading and minimal impact to the circuit under test.

Key Features

• 20 GHz bandwidth with AutoProbe 2 interface
• RC input impedance architecture with lowest loading across a wide frequency range
• Three attenuation ranges (1:1, 4:1, 8:1) for superior noise performance and large voltage ranges
• Input dynamic ranges: 600 mVpp (1:1), 2.5 Vpp (4:1), 5 Vpp (8:1)
• Flexible micro probe head and wide variety of compatible probe head options
• Compatible with Infiniium UXR-, 90000 X-, Q-, V-, and Z-Series oscilloscopes

Applications

• High-speed signal validation and testing
• Differential and single-ended signal measurement
• Probing small, high-density circuit devices
• Standards compliance and margin verification testing
