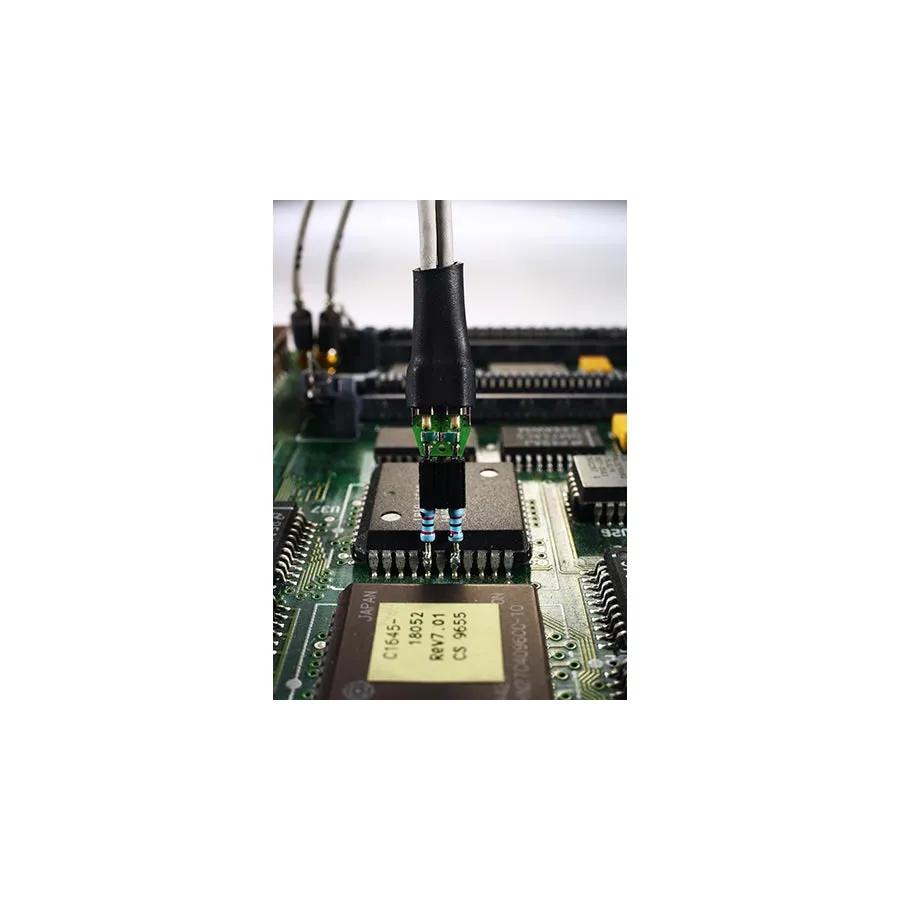

Keysight E2678B InfiniiMax Differential Socket Probe Head
Request a quote
Keysight E2678B InfiniiMax differential socket probe head enables 12 GHz measurement of both differential and single-ended signals via plug-on socket connections.
Product details
| Model | E2678B |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight E2678B is a 12 GHz InfiniiMax differential socket probe head that accommodates both differential and single-ended signal measurement via convenient plug-on socket connections. The versatile design allows measurements without permanent attachment, making it ideal for signal routing across multiple measurement points on a board.
Key Features
- 12 GHz bandwidth for differential and single-ended signals
- Low differential input capacitance ≤ 270 fF
- Plug-on socket connection for quick attachment and removal
- 4-inch lead length for accessing confined areas such as DIMM sockets
- Includes 48 full bandwidth damping resistors
- Includes 6 damped wire accessories and 4 square pin sockets
- Socket heatshrink protection included
Applications
- Mixed-signal testing with both differential and single-ended measurements
- High-speed signal analysis and validation
- Flexible test point access without permanent probe connections
Included Accessories
- 48 full bandwidth damping resistors
- 6 damped wire accessories
- 4 square pin sockets
- Socket heatshrink
Specifications
