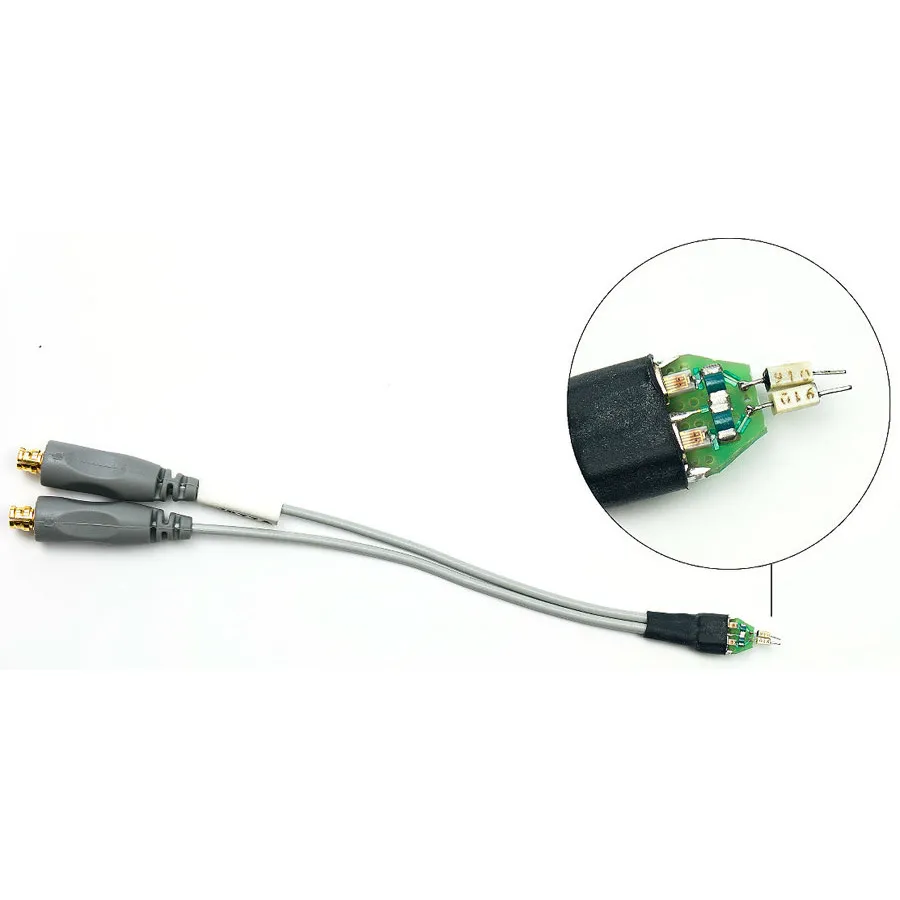

Keysight E2677B InfiniiMax Differential Solder-In Probe Head
Request a quote
Keysight E2677B InfiniiMax differential probe head delivers 12 GHz bandwidth for semi-permanent solder-in connections with low capacitive loading and variable lead spacing.
Product details
| Model | E2677B |
| Manufacturer | Keysight |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keysight E2677B is a 12 GHz InfiniiMax differential probe head with a semi-permanent solder-in connection. Designed for applications requiring reliable, long-term signal coupling, the probe features variable lead spacing (0.2–3.3 mm) and a 4-inch lead length to access signals in confined areas such as DIMM sockets.
Key Features
- 12 GHz bandwidth (12.5 GHz typical)
- Low differential input capacitance ≤ 270 fF
- Semi-permanent solder-in connection for reliable coupling
- Variable lead spacing from 0.2 to 3.3 mm (8 to 130 mils)
- 4-inch lead length for reaching tight spaces
- Includes 20 full bandwidth and 10 medium bandwidth damping resistors
Applications
- High-speed differential signal measurement and analysis
- Embedded system debugging and validation
- Tight space signal access in DIMM sockets and connectors
Included Accessories
- 20 full bandwidth damping resistors
- 10 medium bandwidth damping resistors
Specifications
