Keysight DSOX6WAVEGEN2 2-Channel Waveform Generator Software

Overview

The Keysight DSOX6WAVEGEN2 is a dual-channel function and arbitrary waveform generator software option for InfiniiVision 6000 X-Series oscilloscopes. Ideal for education labs and R&D departments with limited bench space and budget, it provides stimulus output waveforms directly from the oscilloscope with user-definable frequencies, amplitudes, and advanced modulation capabilities.

Key Features

• 20 MHz dual-channel function and arbitrary waveform generator
• DDS technology: 10-bit resolution, 100 MSa/s sample rate, 8 kpts memory
• Multiple waveform types: sine, square, ramp, pulse, DC, noise, sine cardinal, exponential rise/fall, cardiac, and Gaussian
• Amplitude and frequency modulation capability

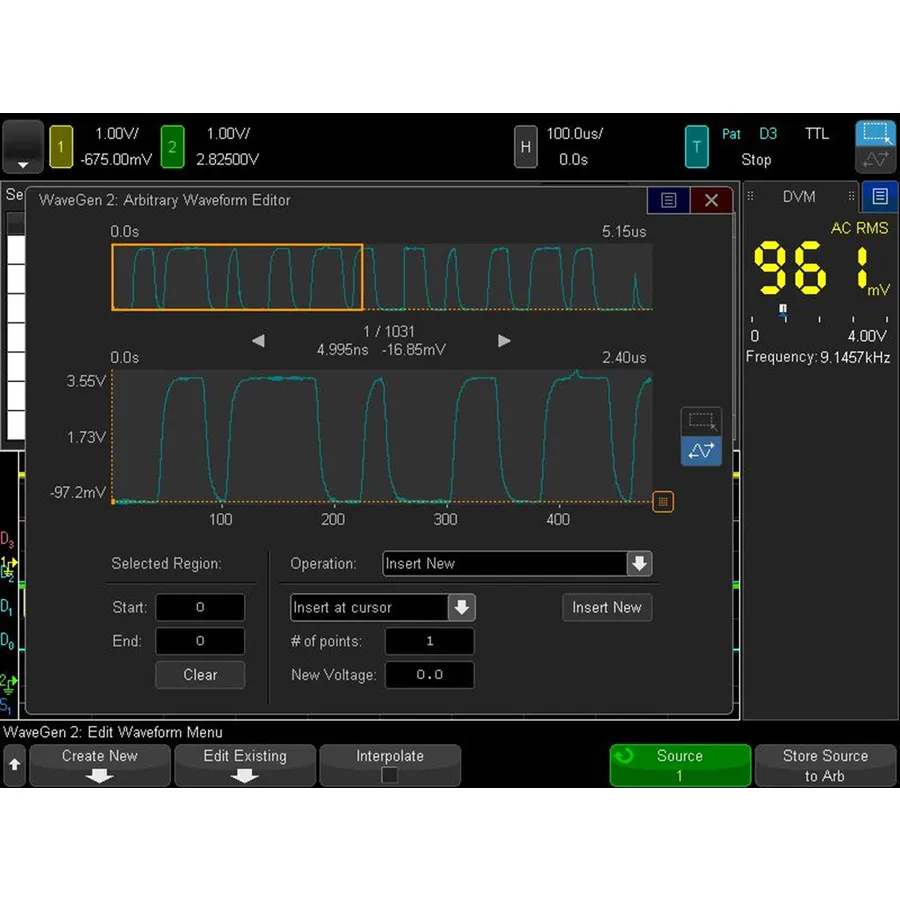

• Built-in waveform editor for custom signal creation and editing
• Capture and store oscilloscope waveforms directly to AWG memory
• Add noise and glitches to test design margins
• Internal memory and USB thumb drive save/recall functionality

Applications

• Education and training laboratories
• Research and development signal testing
• Device characterization and margin testing
• Custom waveform generation and validation
