Keysight DSOX4WAVEGEN2 20MHz Dual-Channel Waveform Generator Upgrade

Overview

The Keysight DSOX4WAVEGEN2 is a software upgrade that adds a dual-channel function and arbitrary waveform generator to InfiniiVision 4000 X-Series oscilloscopes. With a 20-MHz bandwidth and 100 MSa/s sampling rate, it provides standard stimulus output waveforms for device testing and verification, making it ideal for educational labs, bench testing, and R&D environments where space and budget are limited.

Key Features

• 20-MHz dual-channel function and arbitrary waveform generator
• 10-bit resolution, 100 MSa/s sampling rate, 8 kpts memory, DDS technology
• Standard waveforms: sine, square, ramp, pulse, DC, noise, sine cardinal, exponential rise/fall, cardiac, Gaussian
• Amplitude and frequency modulation capabilities

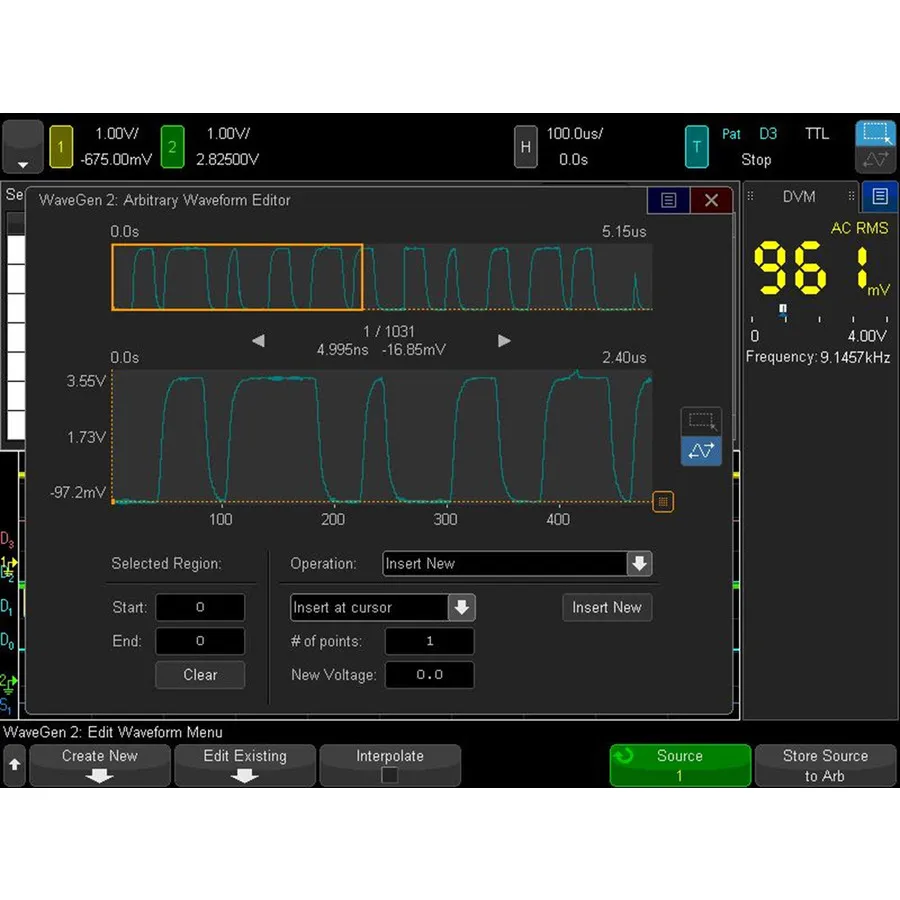

• Built-in waveform editor for custom signal creation and editing
• Capture scope waveforms and save directly to AWG memory with one button press
• Add noise and glitches to signals for margin and stress testing
• Internal memory and USB thumb drive save and recall functionality

Applications

• Device under test (DUT) stimulus generation for functional testing
• Custom signal generation for margin and stress testing
• Educational lab exercises and demonstrations
• R&D design verification and prototyping
