Keysight DSOX3WAVEGEN WaveGen Function and Arbitrary Waveform Generator

Overview

The Keysight DSOX3WAVEGEN is a built-in waveform generator option for InfiniiVision 3000 X-Series oscilloscopes, providing a 20 MHz function generator with arbitrary waveform capability. Ideal for educational, design, and R&D laboratories where bench space and budget are limited, this upgrade allows engineers to generate stimulus signals and perform real-world signal testing without additional equipment.

Key Features

• 20 MHz bandwidth with 10-bit resolution and 100 MSa/s sampling rate
• 8,000-point memory for arbitrary waveforms using DDS technology
• Predefined waveforms: sine, square (variable duty cycle), ramp, pulse (variable width), DC, and noise
• Advanced waveforms: sine cardinal, exponential rise/fall, cardiac, and Gaussian

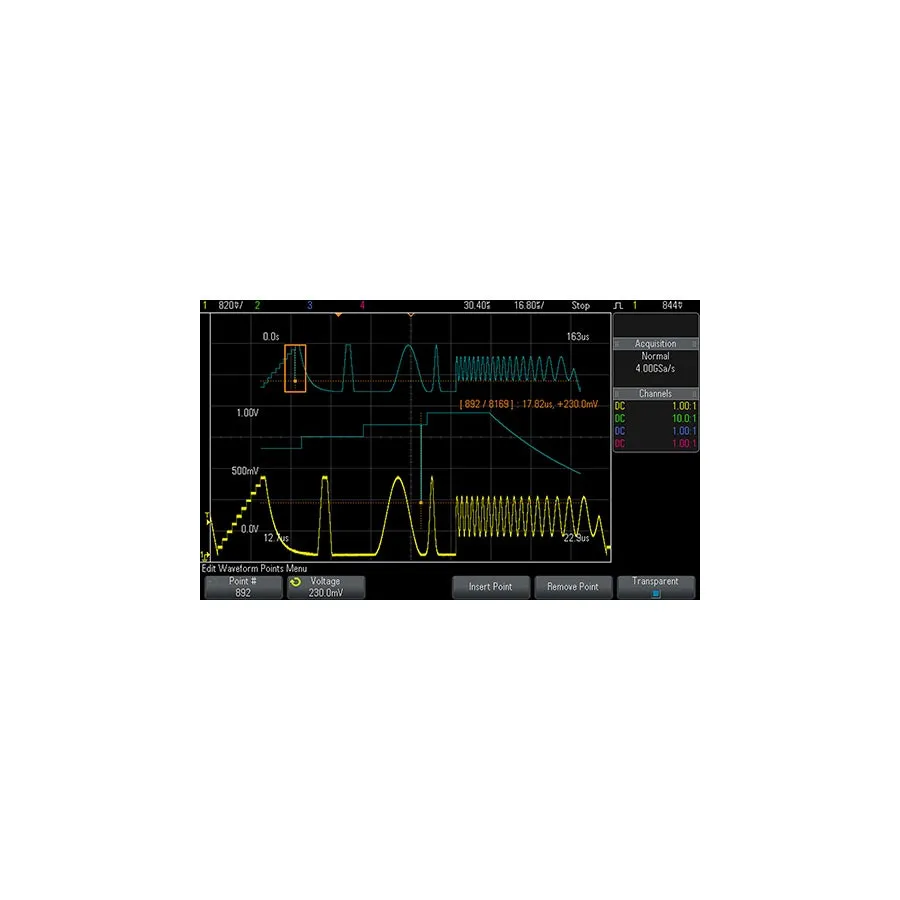

• Built-in waveform editor with noise and glitch injection capabilities
• Capture scope waveforms directly to AWG memory with one button press
• Internal memory and USB thumb drive save/recall for waveform management
• BNC front-panel output for device stimulus generation

Applications

• Design verification and circuit margin testing with real-world signals
• Educational demonstrations of waveform generation and signal processing
• Stimulus generation for prototype testing without external equipment
• Custom signal creation for specialized device testing
