Keysight D9010ASIO Advanced Signal Integrity Software

Overview

The D9010ASIO is an advanced signal integrity test package for Infiniium Offline, providing comprehensive simulation and analysis capabilities. This software delivers deeper insight into signal behavior through equalization modeling, channel de-embedding, crosstalk analysis, power integrity assessment, and PAM-N modulation analysis tools equivalent to those found on Infiniium oscilloscopes.

Key Features

• Feed-Forward (FFE), Decision Feedback (DFE), and Continuous-Time Linear Equalization (CTLE) emulation for accurate signal modeling
• InfiniiSim channel transformation toolset for de-embedding lossy cables and test fixtures, with waveform viewing at any point in the modeled system

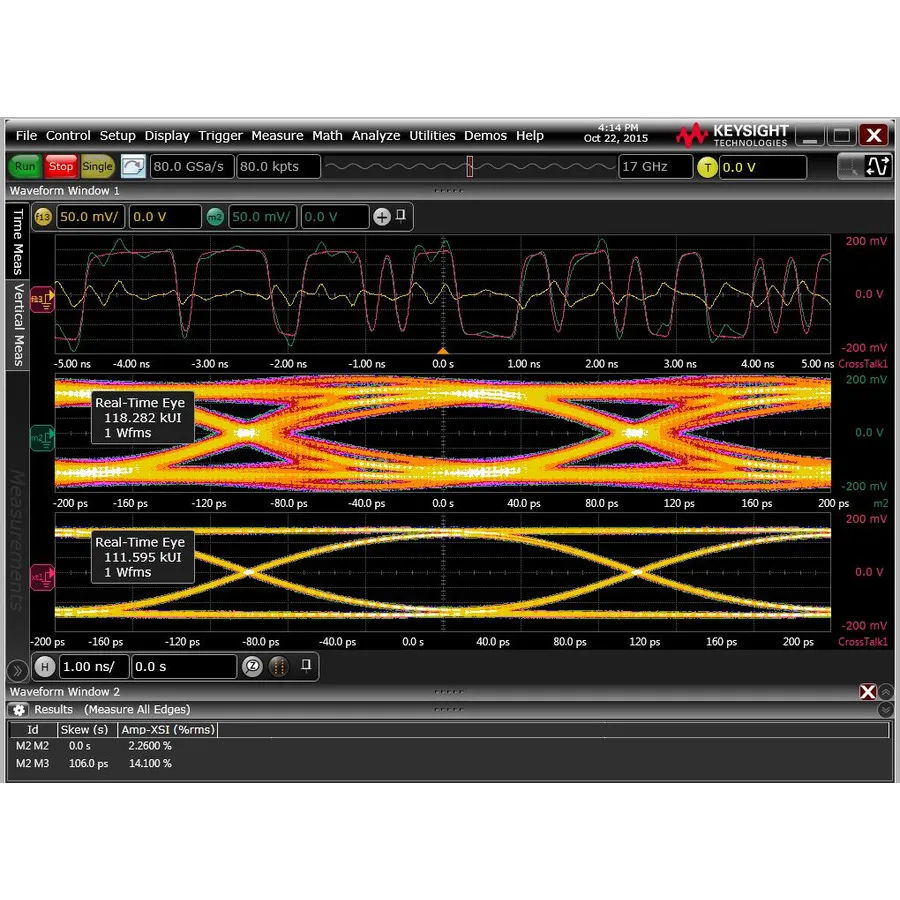

• Crosstalk analysis identifying aggressor sources, quantifying disruption, and calculating design margin recovery
• PAM-4 equalizer support with CTLE and LFE capabilities
• EZJIT jitter and amplitude analysis on JP03 patterns
• Transportable subscription licensing with user-selected start and end dates

Applications

• Signal integrity verification and simulation for high-speed serial data channels
• Channel characterization and de-embedding in test fixture design
• Crosstalk margin analysis and mitigation planning
• Jitter and timing analysis for compliance testing
