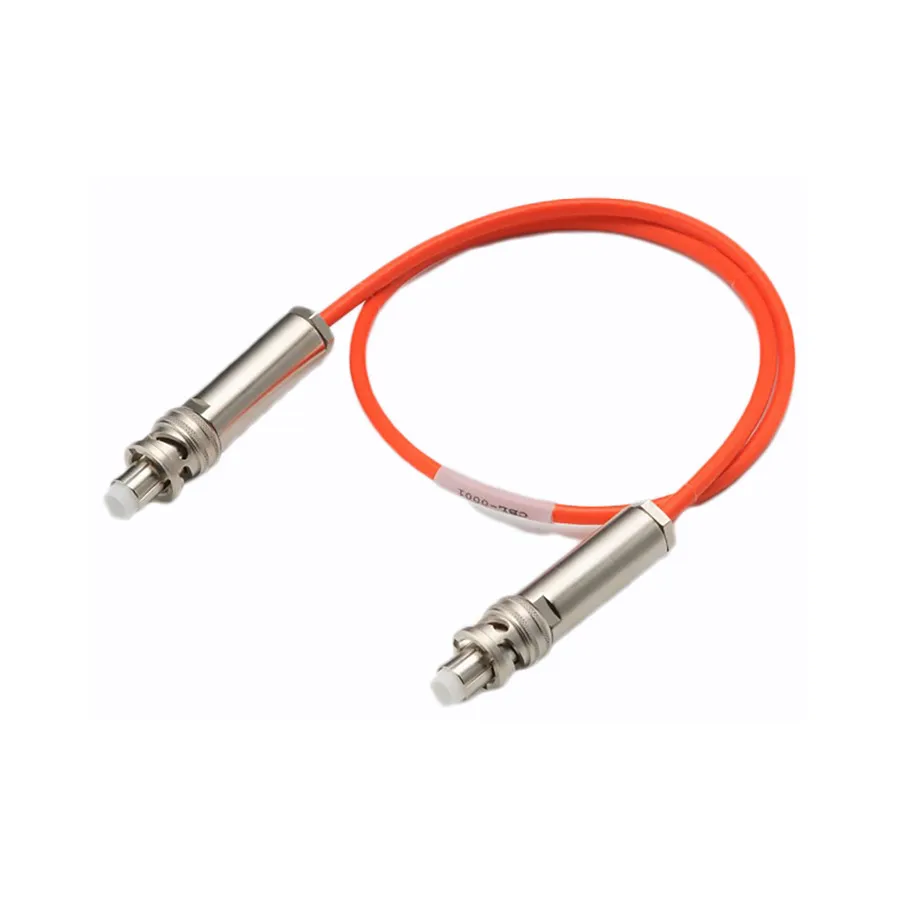

Keithley HV-CA-554-2 High-Voltage Triaxial Cable
Request a quote
Keithley HV-CA-554-2 is a 2-meter male-to-male high-voltage triaxial cable rated for 3300 V with triaxial shielding for precision measurements.
Product details
| Model | HV-CA-554-2 |
| Manufacturer | Keithley |
| Category | Oscilloscope Accessories |
| Availability | Made to order |
Description
Overview
The Keithley HV-CA-554-2 is a high-voltage triaxial cable assembly with male connectors on both ends. This 2-meter cable is designed for use in high-voltage testing applications and can be paired with compatible feedthrough connectors and panel-mount cables.
Key Features
- 2-meter length (6.6 feet) for extended-distance connections
- High-voltage triaxial connectors on both ends
- Rated for 3300 V at 2.0 A maximum
- Triaxial construction reduces noise and provides full shielding
- Low leakage current: less than 100 pA center-to-guard at 3000 V
- Dielectric breakdown voltage: 5250 V center/guard to shield
Applications
- High-voltage testing and measurement
- Use with Keithley HV-CS-1613 Feedthrough Connectors
- Integration with HV-CA-571-3 Panel-Mount Cables
- Laboratory and field high-voltage measurements
Specifications
| Series Compatibility | 2657A Series |
