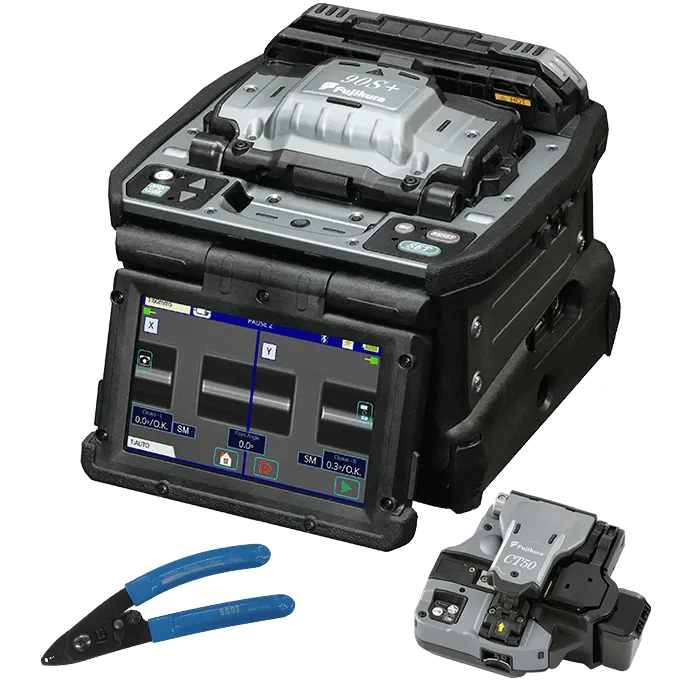

Fujikura 90S+ Core Alignment Fusion Splicer
Request a quote
Fujikura 90S+ advanced fusion splicer with 50% faster operation, 7-9 second FAST mode splice time, Active Fusion Control technology, and 0.02dB average splice loss.
Product details
| Model | 90S+ (S017521) |
| Manufacturer | Fujikura |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Fujikura 90S+ is an advanced core alignment fusion splicer that solves common field problems, from splicing poor quality legacy fiber to automated equipment maintenance. With significant improvements over previous models, including 50% reduction in operation time, the 90S+ is suitable for multiple field splicing applications including bend-insensitive fibers in drop cables, long-haul terrestrial and submarine fibers, loose buffer fiber, and splice-on connectors.
Key Features
- Automatic Open-Close Wind Protectors for faster automated operations without operator touch
- Fiber Retention Clamps supporting automated operations and preventing fiber displacement
- Optimized sheath clamp positioning system enabling faster protection sleeve centering
- 50% operation time reduction compared to previous models
- Active Fusion Control by Cleave Condition analyzing end face quality for improved splice loss
- Active Fusion Control by Fiber Brightness ensuring stable splice performance in varying conditions
- Active Fusion Control by Fiber Discrimination with automatic parameter optimization
- Active Blade Management Technology with dual CT50 cleaver support and wireless connectivity
- Tool-less electrodes with improved illumination design for better visibility
- Multi-function carrying case with work trays and storage drawers
- High capacity lithium-ion battery supporting up to 300 splices
Applications
- High-speed fiber optic network installation and field splicing
- Bend-insensitive fiber splicing in drop cables
- Long-haul terrestrial and submarine cable installation
- Loose buffer tube fiber splicing
- Splice-on connector applications
- Production and specialty environments requiring high output and tight packaging
Included Accessories
- Core Alignment Fusion Splicer unit with 4.9 inch touch screen display
- Rechargeable lithium-ion battery pack
- AC adapter
- Multi-function carrying case with work trays
- Optical fiber cleaver (CT50)
- Spare electrodes and accessories
Specifications
| Automatic Open-Close Wind Protectors | The faster automated features of the 90S+ fusion splicer reduce installation times. With this splicer, an operator can complete the entire splice process from splicing to heating without touching the 90S+ and only moving the fiber. |
| Operation Time Reduction | The shape of the sheath clamp is optimized for 60mm length protection sleeves. The length from splice point to the edge of the sheath clamp is 30mm. Therefore, it is easy to center the protection sleeve over the splice by using your fingers to reference the splice point. |
| Fiber Retention Clamp | The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted by the operator. |
| Operation Time Reduction | These functions enable the 90S+ fusion splicer to reduce operation time by 50% over the previous model. |
| Carrying Case | There are multiple ways to utilize the 90S+ fusion splicer carrying case. The 90S+ fusion splicer is ready to use just by opening the case, but it is also possible to use the 90S+ fusion splicer on top of the carrying case or only with the work tray depending on the work environment. |
| Work Tray | The work tray has many functions. There are two drawers for storage, and the drawers are large enough to store tools or battery packs. Also, the work tray can be divided in two, so it is configurable to fit your work space. |
| Loose Tube Compatibility | The sheath clamp of the 90S+ fusion splicer is compatible with loose tube fiber. The Protrusion part on of the sheath clamp for loose tube fiber engages or retracts by simply changing the switch position with your finger. |
| Tool-Less Electrodes and Illumination | The 90S+ fusion splicer electrodes come as an “assy” including the fixing screw. You can rotate the screw by hand without tools, enabling easy electrode replacement. The transparent electrode covers support wider illumination of the v-groove. As the sheath clamp opens on the opposite side of the illumination lamp, the sheath clamp area is illuminated without shadow. |
| Active Fusion Control by Cleave Condition | One of main causes of high splice loss is bad cleave end face. The 90S+ fusion splicer analyzes the condition of both L and R cleave end faces and performs optimal fusion control. This new technology improves splice loss significantly and reduces the risk of re-installation. |
| Active Fusion Control by Fiber Brightness | Fusion is easily affected by changes in the environment. The 90S+ fusion splicer uses real-time fusion parameter control by analyzing the fiber’s brightness intensity during fusion. It contributes to stable, reduced splice loss. |
| Active Fusion Control by Fiber Discrimination | Adequate splice parameters may differ depending on fiber type. The 90S+ fusion splicer automatically applies the optimum splice parameters depending on the fiber type. |
| Active Blade Rotation by Motor | The 90S+ fusion splicer and CT50 fiber cleaver are enabled with wireless data connectivity. This capability allows automatic cleaver blade rotation when the 90S+ fusion splicer judges the blade is worn. The 90S+ fusion splicer can connect to two CT50s simultaneously. |
| Active Blade Life Management | The 90S+ fusion splicer displays the remaining blade life and informs the user when a blade height change, position change, or new blade is required. |
| Features | Parameters |
| Fiber Alignment Method | Active core alignment |
| Fiber Count can be Spliced | Single fiber |
| Fiber Tensile Test Force | Approx. 2.0N |
| Electrode Life *5 | Approx. 5000 splices |
| Screw Hole for Tripod | 1/4-20UNC |
