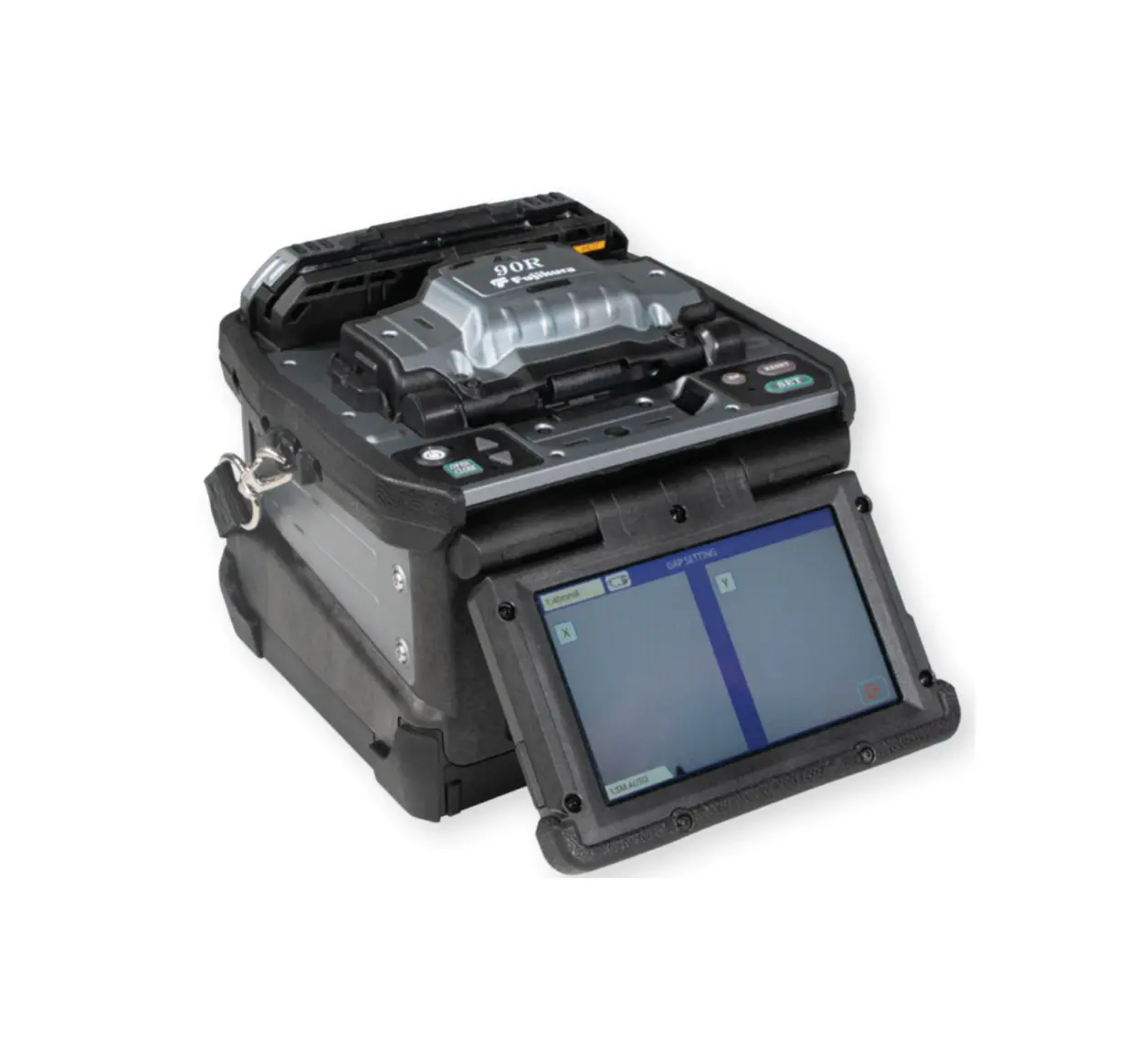

Fujikura 90R Ribbon Fiber Fusion Splicer
Request a quote
Fujikura 90R is an automated ribbon-fiber fusion splicer with field-replaceable V-grooves, designed for high-density splicing in enterprise data centers and networks.
Product details
| Model | 90R (S017511) |
| Manufacturer | Fujikura |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Fujikura 90R is an automated ribbon fiber fusion splicer designed for enterprise data centers, campus, and metro networks where high-density ribbon fiber splicing is required. As fiber demand increases and operators need to splice multiple fibers simultaneously, the 90R automates key steps in the splicing process, freeing operators for other fiber preparation tasks. The splicer features field-replaceable V-grooves, allowing extended field operation without downtime.
Key Features
- Automated splice start for consistent, repeatable results
- Tube heater for reliable splice formation
- Wind protector for field operation stability
- Cleave tracking and automatic blade rotation for dual cleavers
- Field-replaceable V-grooves for extended field service
Applications
- Ribbon fiber splicing in data centers
- Enterprise campus network infrastructure
- Metro network deployment
- SpiderWeb Ribbon (SWR) and high-density fiber installation
Included Accessories
- BTR-15 Battery
- CT50 Cleaver
- RS03 Stripper
- ADC-20 AC Adapter
- ACC-14 AC Cord
- ELCT2-16B Spare Electrodes (pair) with spare V-Grooves (VG12-01)
- FH-70-12 Fiber Holders (pair)
- USB Cable
- Alcohol Dispenser
- Splicer Carrying Strap
- Quick Reference Guide
- TS-03 Tripod Screw
- Video Instruction Manual
- CC-39 Transit Case with Carrying Strap
