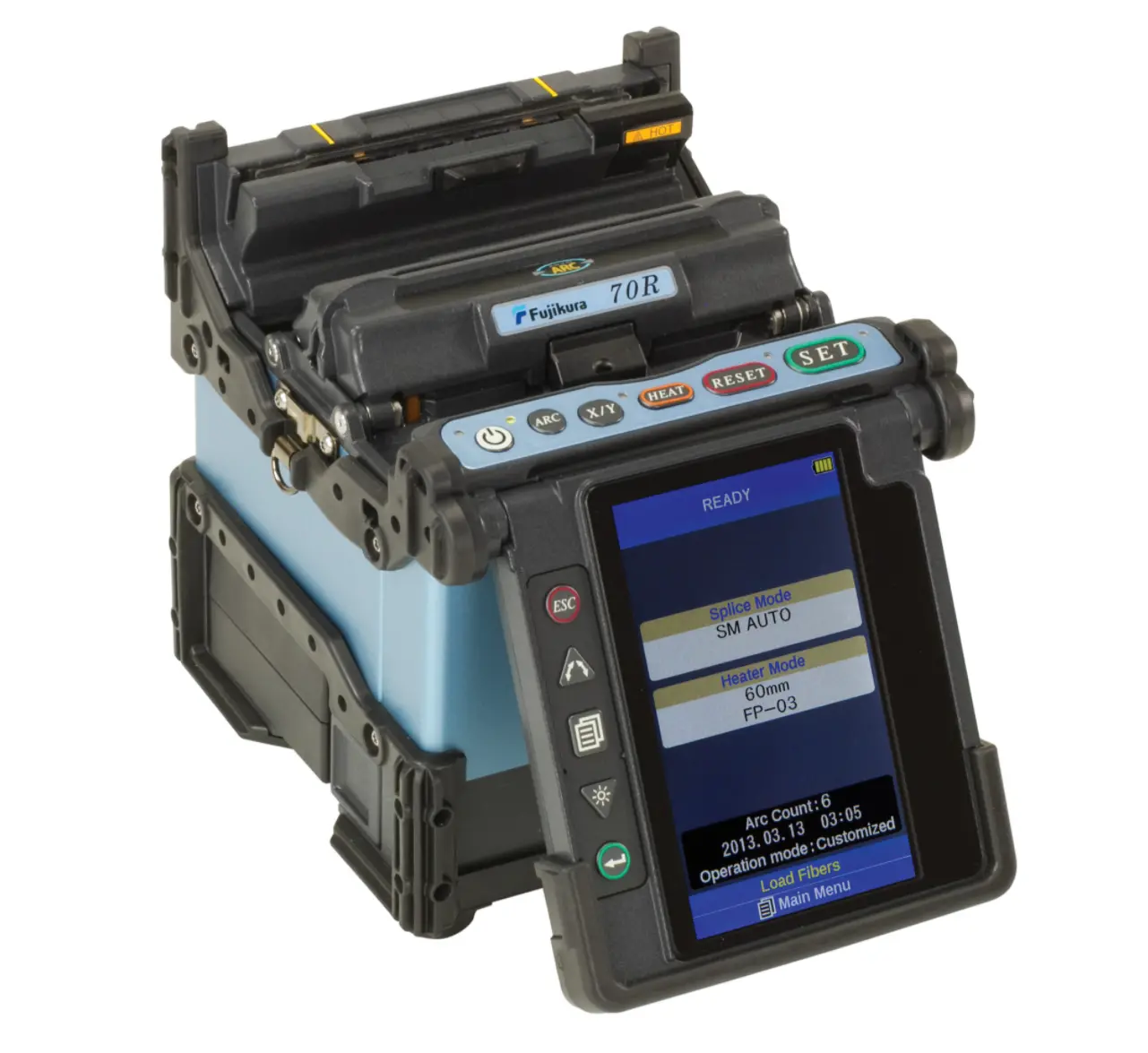

Fujikura 70R Ribbon Fusion Splicer
Request a quote
Fujikura 70R is a fully ruggedized ribbon optical fiber fusion splicer featuring 40-second heating time, configurable automation, and world's first six-direction drop-proof design.
Product details
| Model | 70R (S015670) |
| Manufacturer | Fujikura |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Fujikura 70R is a fully ruggedized ribbon optical fiber fusion splicer designed for demanding field conditions. Its configurable automation features streamline the splicing process, while its drop-proof design and dust/rain protection ensure reliable operation in harsh environments.
Key Features
- Automated wind protector and clamshell tube heater with 40-second heating time for ribbon protection sleeves
- Long-life electrodes rated for 1,500 splices
- High-resolution 4.7-inch color LCD monitor with 90X fiber magnification
- Configurable automation allows customization of automated functions
- Powerful Li-ion battery supports 110 splices and heating cycles per full charge
- World's first six-direction drop-proof design with ruggedized rubber casing
- Dust- and rain-proof design for superior field protection
- Video guides for operation and troubleshooting in splicer software
Applications
- Ribbon optical fiber splicing in field deployments
- Long-term outdoor fiber installations requiring durability
- High-volume splicing operations with extended battery runtime
Included Accessories
- Transit case with detachable built-in worktable
- Li-ion battery and charger
Specifications
| Fiber Type | Ribbon optical fiber |
| Splices per Charge | 110 splices and heating cycles |
| Electrode Life | 1,500 splices |
| Display | 4.7-inch color LCD, 90X magnification |
| Heating Time | 40 seconds for ribbon protection sleeve |
| Battery Type | Li-ion |
| Durability | Six-direction drop-proof, dust and rain-proof |
| Case | Transit case with detachable worktable |
