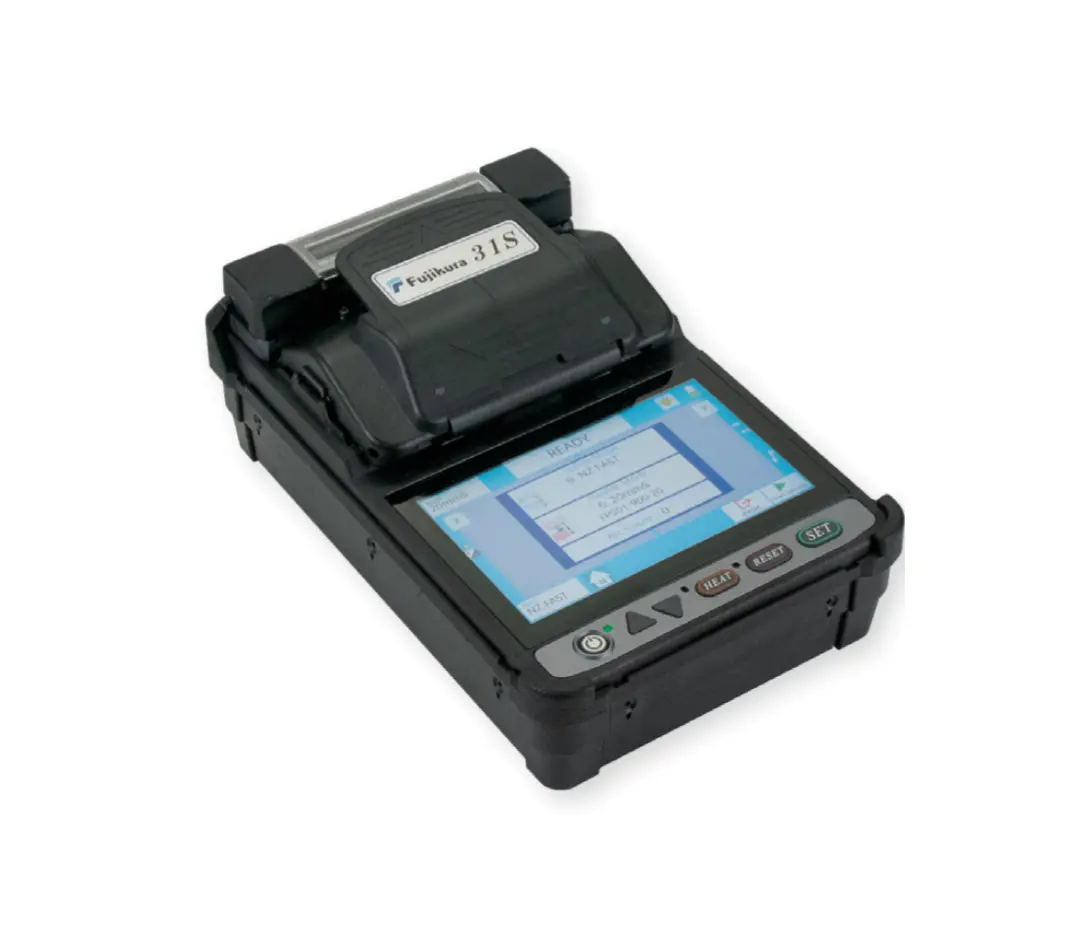

Fujikura 31S Fusion Splicer
Request a quote
Fujikura 31S is a ruggedized active cladding alignment fusion splicer with 6-second splice time, 25-second heat shrink, dual-camera v-groove alignment, and 5-inch touchscreen.
Product details
| Model | 31S (S017109) |
| Manufacturer | Fujikura |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Fujikura 31S is a fully ruggedized, active cladding alignment fusion splicer engineered for consistent splicing performance in challenging field conditions. It features dual-camera active v-groove alignment technology that delivers a 6-second splice time and 25-second heat shrink cycle with minimal loss. Extended-life electrodes rated for 5,000 splices minimize downtime, while the intuitive 5-inch touchscreen monitor enables quick operation and software updates via internet connectivity.
Key Features
- Dual-camera active v-groove alignment for precise fiber positioning
- 5-inch touchscreen monitor with crystal-clear display in all lighting conditions
- 6-second splice time with 25-second heat shrink cycle
- Interchangeable sheath clamps and fiber holders for user preference
- Extended-life electrodes rated for 5,000 splices with tool-free replacement
- Long-life battery supporting 200 splice and heat cycles per charge
- Fully ruggedized for shock, moisture, and dust resistance
- 100 total splice modes for fiber type flexibility
- Software updates via internet for new splice programs
- Stores 10,000 splice results for quality tracking
Applications
- Single-mode and multimode fiber installation
- Telecommunications network deployment
- Data center backbone installation
- Field repair and splicing operations
- Specialty fiber splicing (DSF, NZDS)
Included Accessories
- S31A Sheath clamps (installed)
- SP-31 Set Plates
- ADC-19A AC Adapter
- BTR-11 Battery Pack (installed)
- FH-70-250 and FH-70-900 Fiber Holders
- ACC-09 Power Cord
- ELCT2-16B Spare Electrodes (pair)
- SS-03 Single Fiber Stripper
- CC-35 Transit Case
- Operation Manual on CD
- Quick Reference Guide
- CT08 Cleaver (included in S017109 kit)
Specifications
| Feature | Parameter |
| Applicable Fibers | Single-mode (G.652 & G.657) Multimode (G.651) DSF (G.653) NZDS (G.655) |
| Cladding Diameter | 125 μm |
| Coating Diameter | 250 μm up to 3 mm |
| Fiber Cleave Length | 5 mm to 16 mm |
| Typical Average Splice Loss | 0.03 dB (SM) 0.01 dB (MM) 0.05 dB (DS) 0.05 dB (NZDS) |
| Splicing Time | Typical 6 sec with SM |
| Arc Calibration Method | Automatic, Real-time and by using results of previous splice when in AUTO mode Manual arc calibration function available |
| Splicing Modes | Total 100 splice modes |
| Splice Loss Estimate | Based on two camera, active cladding alignment data |
| Storage of Splice Result | 10,000 splice results |
| Fiber Display | 5 inch TFT color LCD; with X or Y view or both X and Y view simultaneously |
| Magnification | 200X for single-camera view 132X magnification for dual-camera view |
| Viewing Method | 2 axis CMOS camera |
| Operating Condition | Altitude: 0 to 5,000 m above sea level, -10° to +50° C Humidity: 0 to 95% RH, non-dew |
| Mechanical Proof Test | 1.96 N |
| Tube Heater | 30 heating modes |
| Tube Heating Time | Typical 25 sec with FP-60 (60 mm) sleeve |
| Protection Sleeve Length | 60 mm 40 mm micro |
| Splice/Heat Cycles with Battery | Typical 200 cycles with BTR-11 |
| Electrode Life | 5,000 splices |
| Power Supply | Auto select from 100 V to 240 V with AC adapter 14.8 V DC with installed battery |
| Terminals | USB 2.0 |
| Wind Protection | Maximum wind velocity of 15 m/s. (34 mph) |
| Dimensions | 131 x 201 x 79 (mm) |
| Weight | 1,300 g (2.85 lbs) with battery |
