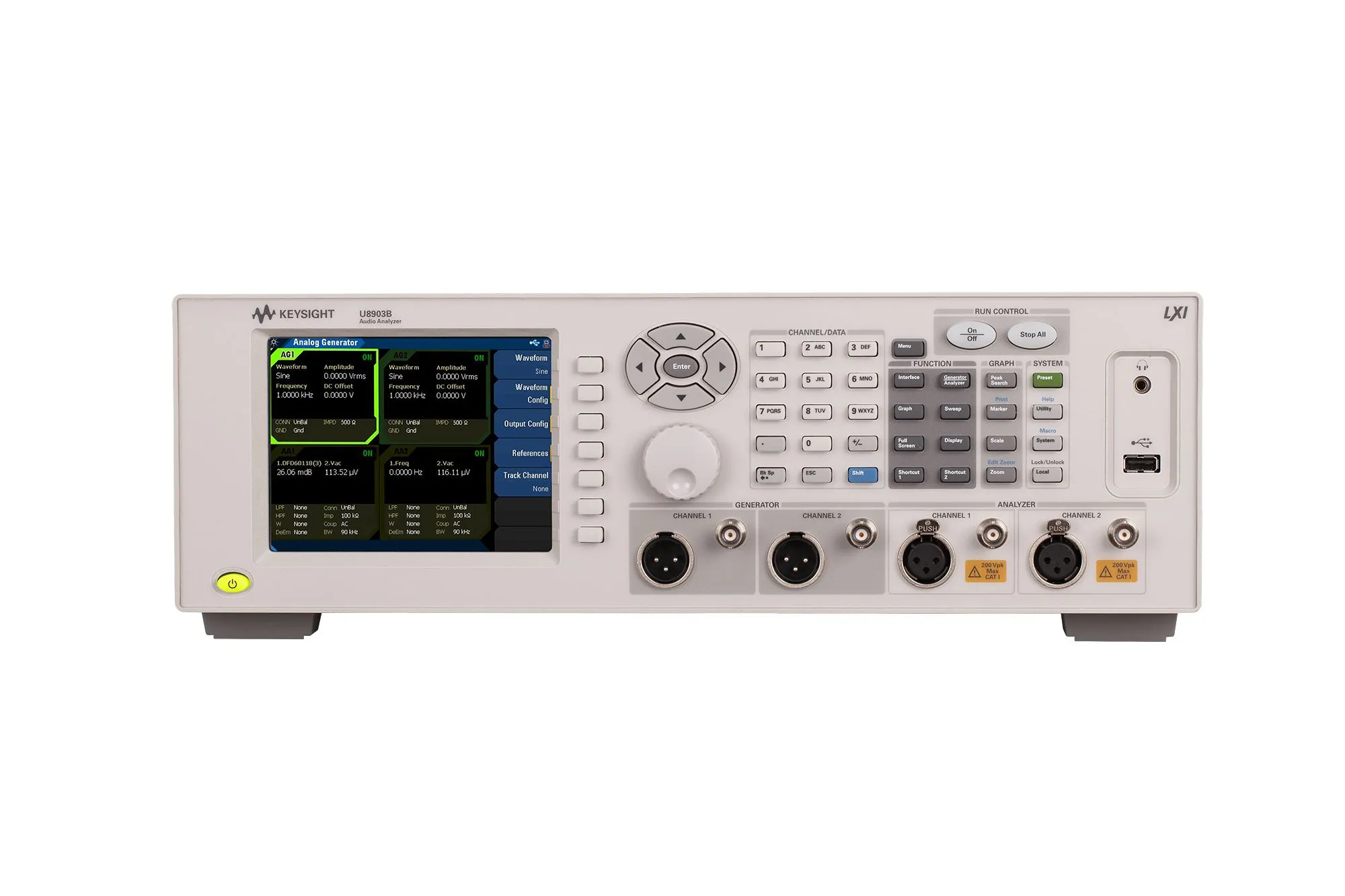

Keysight U8903B Performance Audio Analyzer
Request a quote
Keysight U8903B Performance Audio Analyzer with low residual distortion and bandwidth up to 1.5 MHz for high-accuracy audio measurements and testing.
Product details
| Model | U8903B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight U8903B is a performance audio analyzer designed for measuring demanding audio devices with high accuracy. With an extremely low residual distortion of less than –110 dB, it enables precise testing of audio components, wireless systems, and consumer audio products.
Key Features
- Low residual distortion below –110 dB for testing low-distortion devices
- Measurement bandwidth from 10 Hz to 1.5 MHz with optional expansion
- Two-channel base configuration with expandable up to 8 analog analyzer channels
- Bluetooth audio measurement capability with optional Bluetooth card
- Automatic test sequences and SCPI code compatibility
- Preconfigured POLQA and PESQ measurement capabilities
Applications
- Consumer audio device testing and characterization
- Automotive infotainment system testing
- Low-distortion audio component measurement
- Signal-to-noise ratio and crosstalk analysis
- Bluetooth-enabled audio measurements
Included Accessories
- USB cables
- Power cord
- Product reference CD-ROM
- Certificate of calibration
Specifications
| Features | Parameters |
| Applications Available | n/a |
| Applications-Cellular | n/a |
| Applications-Digital Video | n/a |
| Applications-General Purpose | SCPI Code Compatibility |
| Applications-Wireless Connectivity | n/a |
| DANL @1 GHz | n/a |
| Frequency | 10 Hz to 1.5 MHz |
| Frequency Options | n/a |
| Maximum Analysis Bandwidth | 1.5 MHz |
| Maximum Real-Time Bandwidth | n/a |
| Overall Amplitude Accuracy | ±0.03 dB |
| Performance Level | ◆◆◇◇◇◇ |
| Type | Benchtop |
| Triggering | n/a |
| U8903B-STD | Performance Audio Analyzer, 2 channels Included Accessories: USB cables Power cord Keysight U8903B audio analyzer product reference CD-ROM Certificate of calibration |
