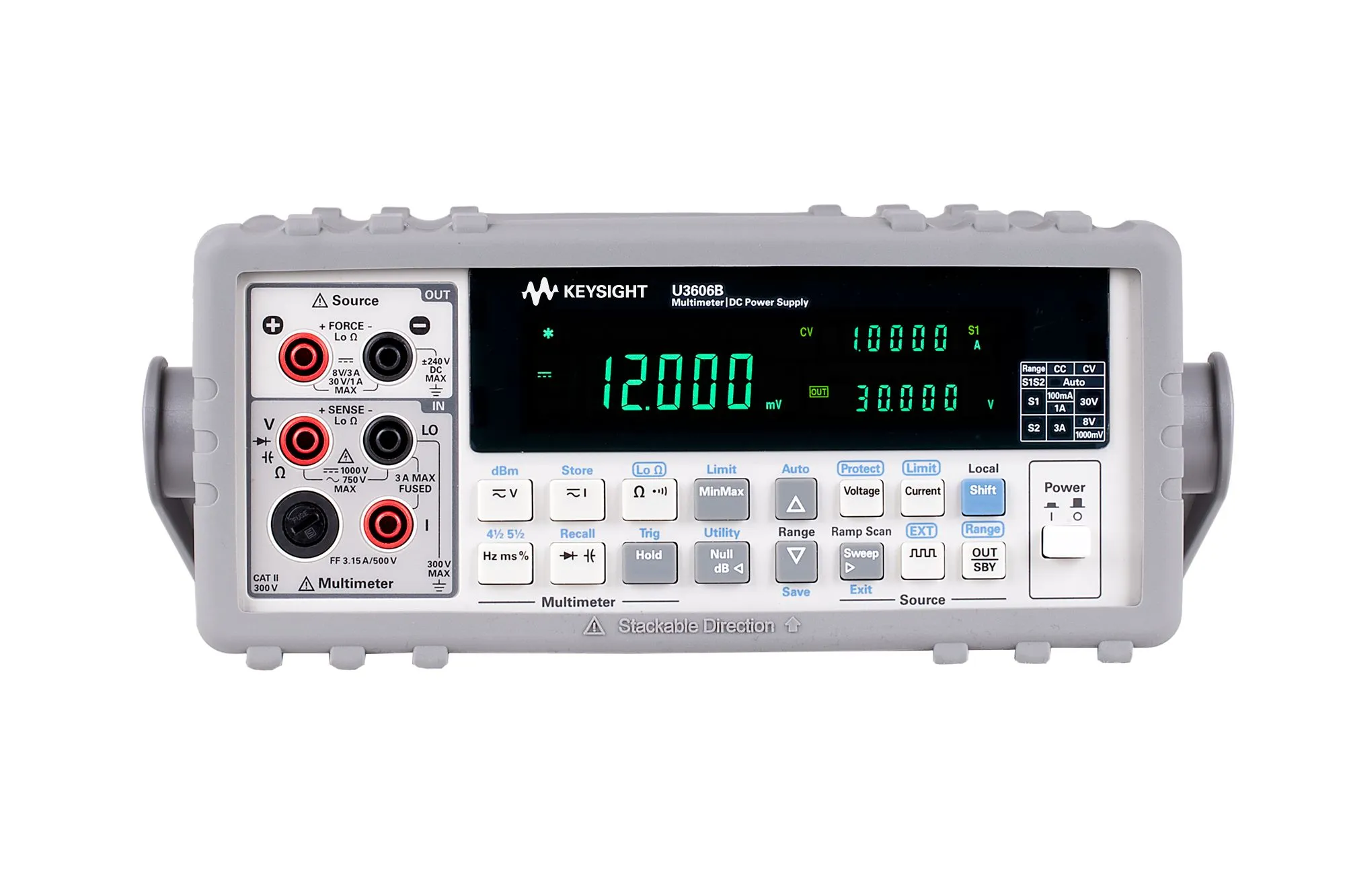

Keysight U3606B Multimeter & DC Power Supply
Request a quote
Keysight U3606B — 5.5-digit digital multimeter combined with 30 W DC power supply, 0.025% DCV accuracy, compact single unit.
Product details
| Model | U3606B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight U3606B is a full-featured 5.5-digit digital multimeter with a built-in 30-W DC power supply in a compact footprint. This combination enables simultaneous power delivery to the device under test while measuring voltage and current, allowing two test functions within the same unit.
Key Features
- 120,000 counts resolution (5.5-digit) DMM with 10 measurement functions including 4-wire milliohm
- 8 math functions with 0.025% basic DCV accuracy
- 30 W integrated DC power supply with multiple output ranges: 30 V/1 A, 100 mA/30 V, 8 V/3 A, 1,000 mV/3 A
- Excellent line/load regulation up to 0.01% + 3 mV
- OVP (over-voltage protection) and OCP (over-current protection) load protection
- Auto ramp and scan with square-wave output capability
- Kensington lock for security
Specifications
| Resolution | 120,000 counts (5.5-digit) |
| DCV Accuracy | 0.025% basic |
| Measurement Functions | 10 (including 4-wire milliohm) |
| Math Functions | 8 |
| Power Supply Output | 30 W maximum |
| Power Supply Ranges | 30 V/1A, 100 mA/30 V, 8 V/3 A, 1,000 mV/3 A |
| Line/Load Regulation | 0.01% + 3 mV |
| Protection | OVP and OCP |
