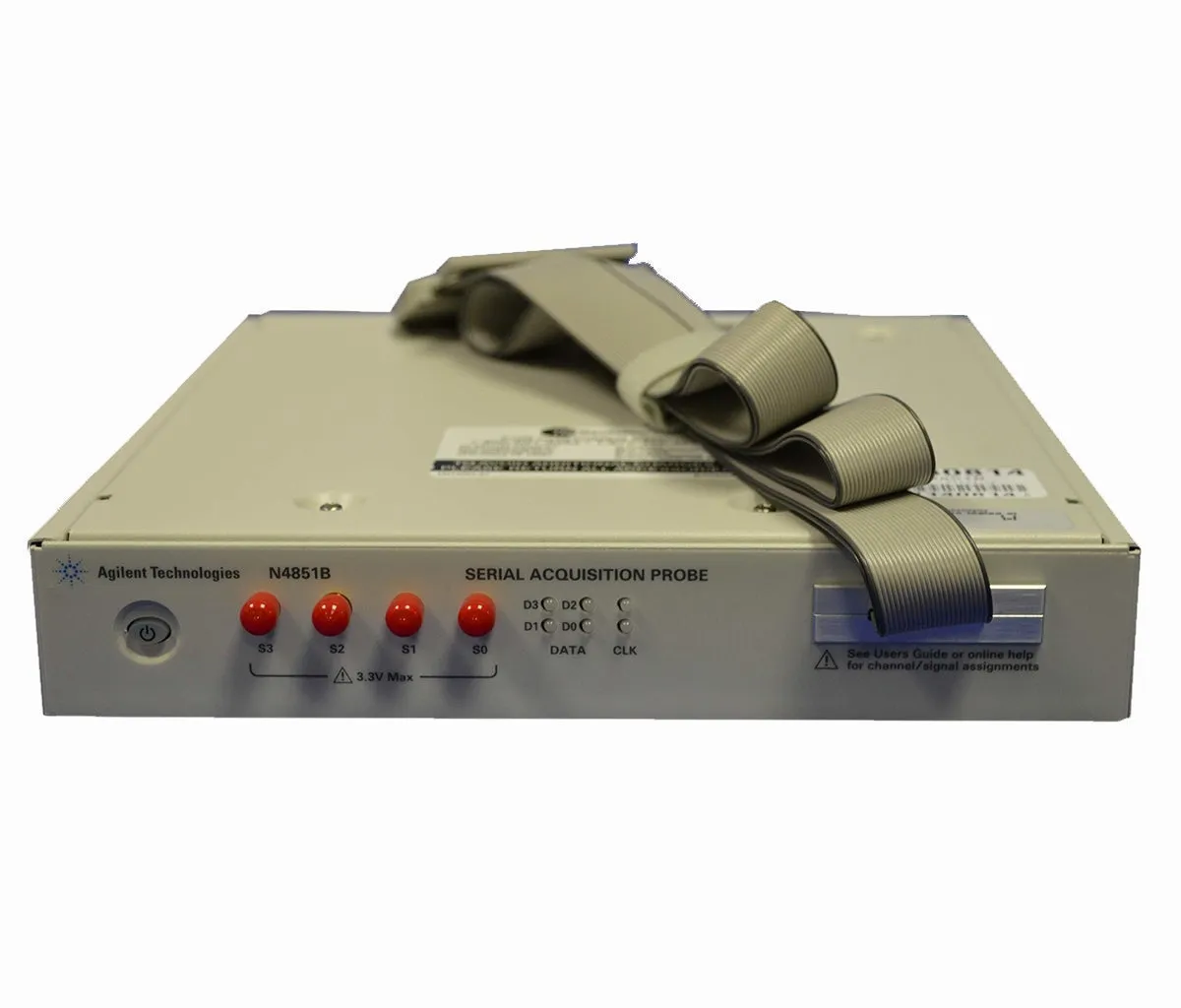

Keysight N4851B MIPI D-PHY Acquisition Probe
Request a quote
Keysight N4851B is a MIPI D-PHY acquisition probe for real-time digital serial analysis of CSI-2 camera and DSI display interfaces in mobile devices.
Product details
| Model | N4851B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight N4851B is a MIPI D-PHY acquisition probe designed for real-time digital serial analysis of MIPI D-PHY interfaces. It works in conjunction with Keysight 16800 and 16900 Series logic analyzers to enable comprehensive characterization of mobile display and camera devices based on MIPI standards.
Key Features
- Real-time digital serial acquisition of MIPI D-PHY interface signals
- Support for CSI-2 (Camera Serial Interface) for camera device analysis
- Support for DSI (Display Serial Interface) for display device analysis
- Operates with Keysight 16800 and 16900 Series logic analyzers
- Enables debug and test of MIPI D-PHY components
Applications
- Mobile device camera interface characterization and debugging
- Display interface analysis and troubleshooting
- MIPI D-PHY component development and validation
- Integration with mobile device designs
Specifications
| Compatible Logic Analyzers | Keysight 16800 and 16900 Series |
| Interface Type | MIPI D-PHY |
| Supported Protocols | CSI-2, DSI |
| Measurement Type | Real-time digital serial analysis |
