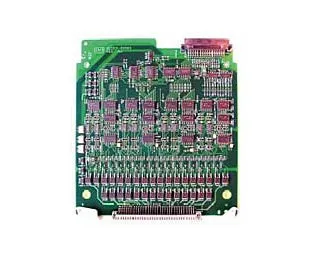

Keysight N2263A Digital I/O Module
Request a quote
Keysight N2263A is a 32-bit bidirectional digital I/O module with TTL compatibility, 0.6A channel output, and multiple handshake control modes.
Product details
| Model | N2263A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight N2263A is a 32-bit digital I/O module providing bidirectional TTL-compatible lines with three handshake and control lines. Each I/O line can source or sink up to 0.6 A, making it suitable for controlling external devices including relays, solenoids, and microwave components. Input protection against overvoltage exceeding 42 VDc and integrated ESD protection ensure reliable operation in demanding test environments.
Key Features
- 32-bit bidirectional I/O lines with TTL compatibility
- Up to 0.6 A output per channel for external device control
- Three dedicated handshake and control lines (PCTL, I/O, PFLG)
- Five programmable handshake modes for peripheral communication
- Open collector output option up to 42V for high-voltage applications
- Input overvoltage protection above 42 VDc and ESD protection
- Positive or negative logic mode operation
Applications
- Relay and solenoid control in automated systems
- Microwave component switching and attenuation control
- Digital signaling and peripheral handshaking
- High-current load switching in test systems
Specifications
| I/O Lines | 32-bit bidirectional |
| Logic Levels | TTL compatible |
| Output Current per Channel | 0.6 A |
| Open Collector Voltage Rating | Up to 42 VDc |
| Input Protection | >42 VDc with ESD |
| Control Lines | 3 handshake and control |
| Handshake Modes | 5 programmable modes |
| Logic Modes | Positive or negative |
