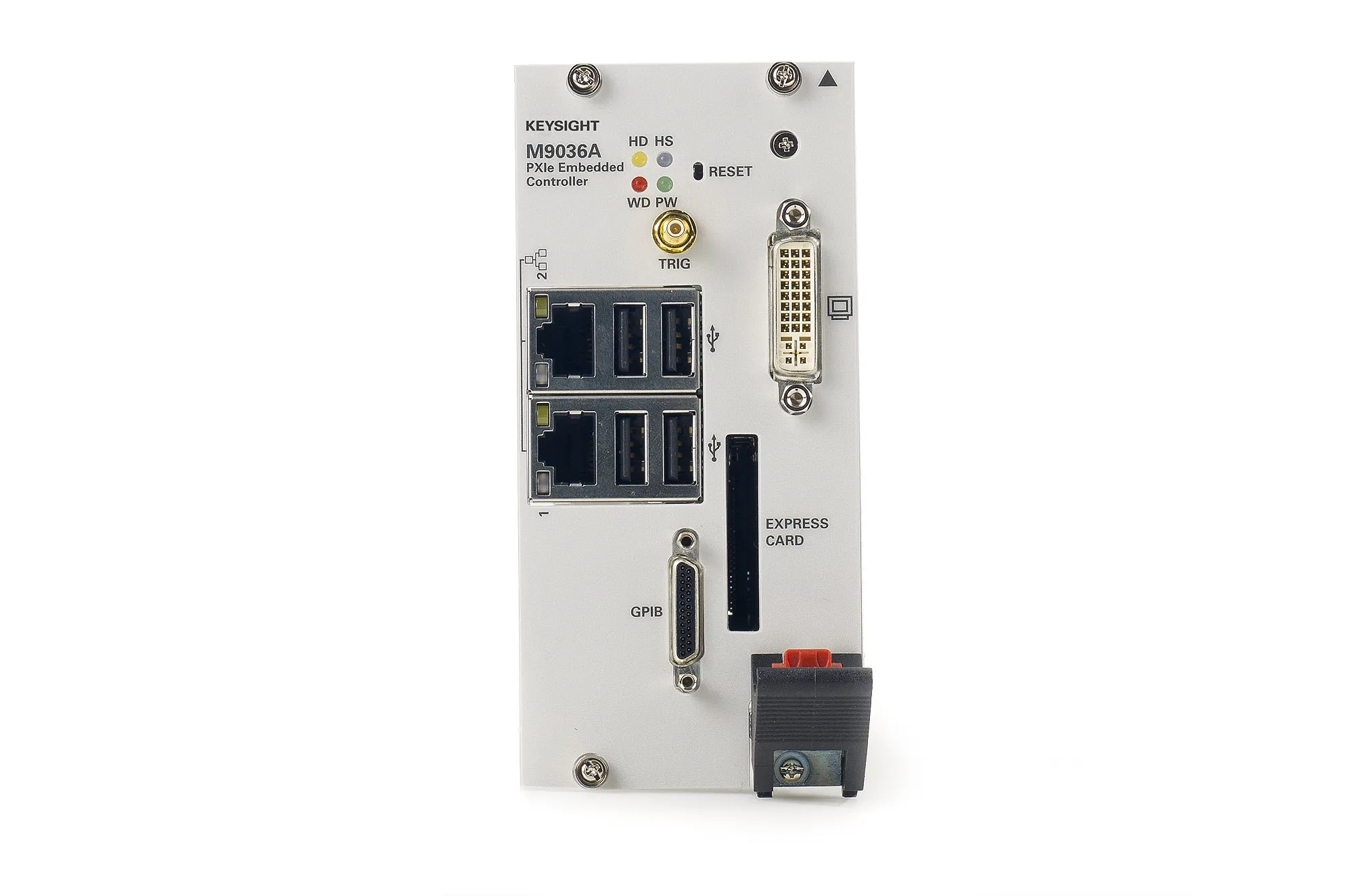

Keysight M9036A PXIe Embedded Controller
Request a quote
Keysight M9036A is a compact three-slot PXIe embedded controller with Intel Core i5 processor and integrated interfaces for test systems.
Product details
| Model | M9036A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight M9036A is a three-slot PXIe embedded controller designed for compact test system implementations. Built around an Intel Core i5 processor running at 2.4 GHz with up to 8 GB of RAM and a 160 GB solid-state drive, it provides the computational power needed for multi-tasking test environments. The module integrates seamlessly with hybrid test systems through its comprehensive front-panel connectivity options.
Key Features
- Intel Core i5 processor at 2.4 GHz with Hyper-Threading Technology
- Up to 8 GB RAM and 160 GB solid-state drive
- Multiple interfaces: 4x USB, 2x 10/100/1000 LAN, DVI-I, ExpressCard 34, GPIB, and SMB PXI trigger
- Gen 2 PCIe backplane switch enabling x8 slots for peer-to-peer communication
- Choice of operating systems: Windows 7 Professional, Windows Embedded Standard 7, or Windows 10 IoT Core
- Preloaded with Keysight I/O libraries and chassis drivers
Applications
- Aerospace and Defense test systems
- Communications test equipment
- Electronic Functional Test (EFT)
- General purpose measurement applications
- Transportable PXIe systems
Specifications
| Functionality | Three-slot, PXIe system module Intel Core i5 processor at 2.4 GHz 160 GB solid state drive and up to 8 GB RAM USB (4), 10/100/1000 LAN (2),DVI-I, ExpressCard 34, GP-IB, and SMB PXI trigger |
| Performance characteristics | Gen 2 PCIe backplane switch enable x8 slots in the Keysight M9018A chassis to communicate peer-to-peer at Gen 2 speeds without involving the CPU itself Ideal for transportable PXIe applications Specifically designed for PXIe systems providing choice between embedded and external controllers Preloaded with Keysight I/O libraries, operating system, and chassis drivers resulting in a reduced system development time |
| M9036A | PXIe embedded PC controller |
