Keysight M9018A PXIe Chassis
Request a quote

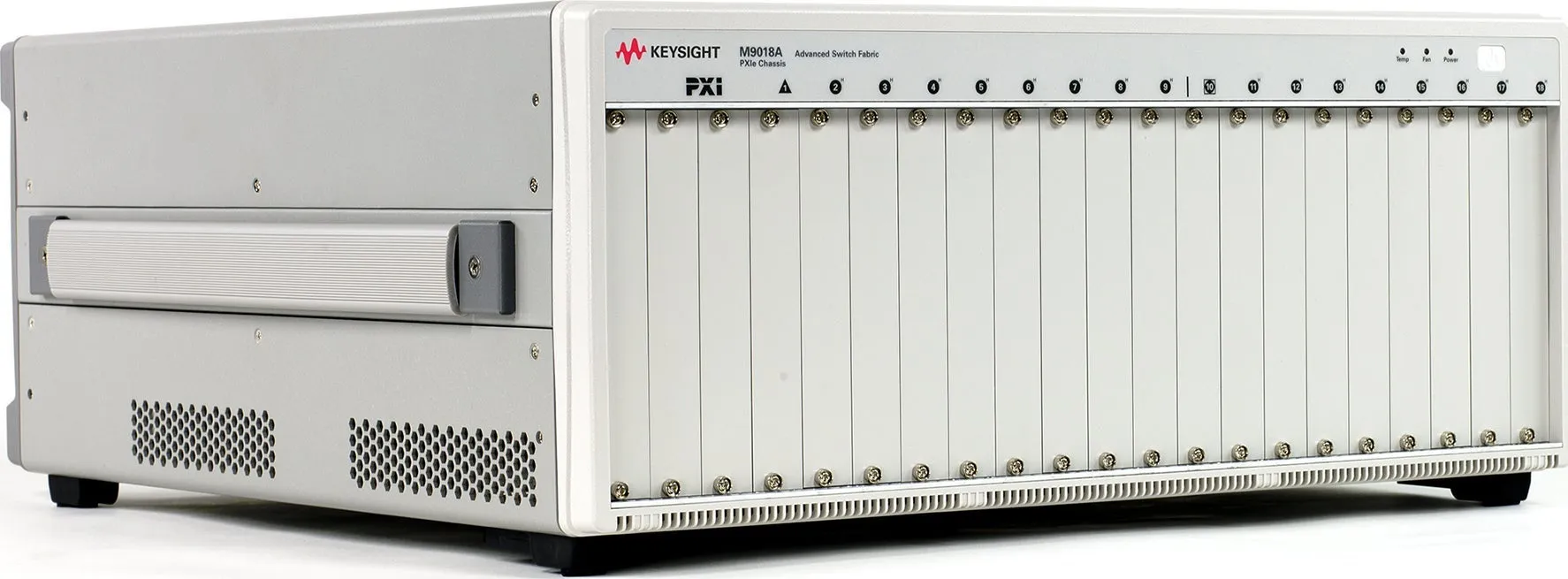

M9018A PXIe chassis features 18 slots, 16 hybrid-compatible modules, Gen 2 PCIe switch fabric, and 4U form factor for flexible test systems.
Product details
| Model | M9018A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The M9018A is an 18-slot PXIe chassis designed for flexibility in modular test systems. It features 16 hybrid-compatible slots and 3 controller expansion slots, allowing mixed PXIe and PXI-1 module configurations. The innovative design fits within 4U of rack space in most cases, suitable for benchtop and rack-mounted deployments.
Key Features
- 18 total slots with 16 hybrid-compatible slots for mixed module types
- 3 controller expansion slots for embedded PXIe controllers
- Advanced PCIe Gen 2 switch fabric with configurable 2-link or 4-link modes
- Module slots provide x4 or x8 PCIe links depending on position
- Two x1 PCIe links for PCI bridge control of legacy PXI modules
- Compact 4U rack form factor with innovative cooling system
- Optional air-inlet modules for additional cooling capacity
- Configurable switch fabric supports peer-to-peer module communications
Applications
- Production test systems combining legacy and modern instruments
- Automated measurement and data acquisition systems
- Aerospace and defense test environments
- Laboratory and benchtop measurement systems
Specifications
| Chassis Type | PXIe (PCI Express eXtensions for Instrumentation) |
| Total Slots | 18 |
| Hybrid-Compatible Slots | 16 |
| Controller Expansion Slots | 3 |
| PCIe Switch Fabric | Gen 2 |
| Switch Fabric Configurations | 2-link (2x8) or 4-link (4x4) |
| Module PCIe Links | x4 or x8 depending on slot location |
| Control Links | Two x1 PCIe for PCI bridge control |
| Form Factor | 4U rack mount (in most cases) |
| Peer-to-Peer Communication | Supported between peripheral slots |
