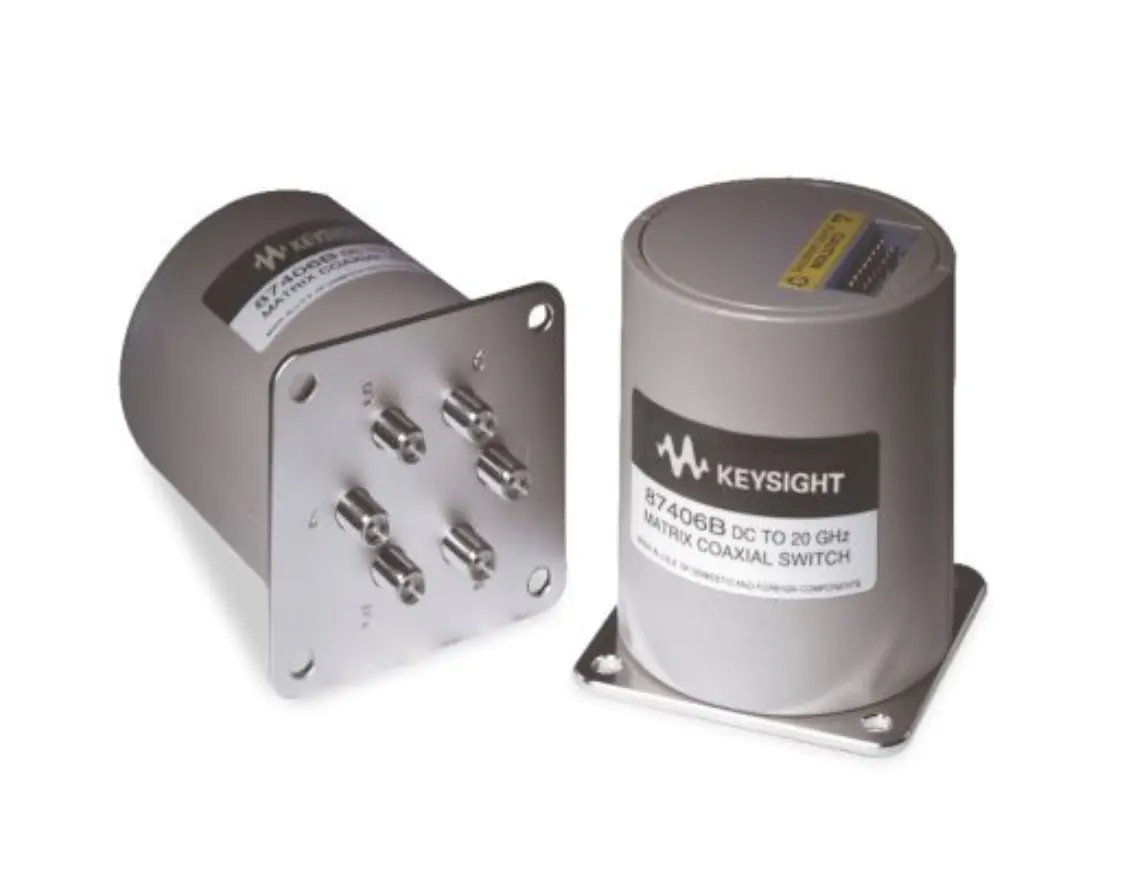

Keysight 87406B Matrix Switch
Request a quote
Keysight 87406B is an RF matrix switch with 3×3, 2×4, and 1×5 blocking configurations, 10 million cycle operating life, and exceptional 0.03 dB repeatability.
Product details
| Model | 87406B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87406B is an RF matrix switch designed for automated test and measurement, signal monitoring, and routing applications. Built with innovative design and rigorous process control, it provides the reliability and repeatability required in production test systems, satellite monitoring, antenna systems, and test instrumentation.
Key Features
- Multiple blocking matrix configurations: 3×3, 2×4, and 1×5
- Magnetic latching with make-before-break or break-before-make operation
- Operating life of 10 million cycles, typical
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
- Excellent isolation, typically greater than 100 dB at 20 GHz
- Terminated ports
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)
Applications
- Production test systems
- Satellite and antenna monitoring systems
- Test instrumentation
- Signal routing and switching
Specifications
| Frequency Range | DC to 20 GHz |
| Matrix Configurations | 3×3, 2×4, 1×5 |
| Operating Life | 10 million cycles, typical |
| Repeatability | 0.03 dB (up to 5 million cycles) |
| Isolation | > 100 dB @ 20 GHz |
| Switching Operation | Make-before-break or break-before-make |
| Control Logic | TTL/5V CMOS compatible (optional) |
