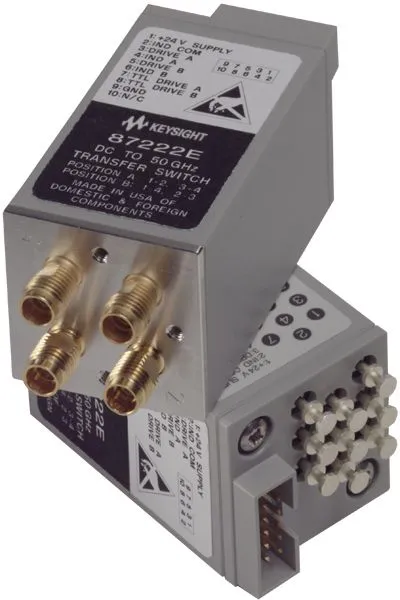

Keysight 87222E 4-Port Coaxial Transfer Switch
Request a quote
Keysight 87222E 4-port coaxial transfer switch with exceptional repeatability, low insertion loss, and high isolation for signal routing applications.
Product details
| Model | 87222E |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87222E is a 4-port coaxial transfer switch designed for flexible signal routing applications. It provides exceptional repeatability, low insertion loss, and high isolation, making it ideal for signal conditioning and switching applications requiring reliable performance.
Key Features
- 4-port coaxial configuration for flexible signal routing
- Exceptional repeatability for consistent performance
- Low insertion loss for minimal signal degradation
- High isolation for clean signal separation
- Supports multiple switching configurations including drop-out, dual input/output, and signal reversal
Applications
- Signal routing and conditioning
- Drop-out switching
- Dual input/output switching
- Signal reversal switching
Specifications
| Frequency Range | DC to 50 GHz |
| Repeatability | 0.03 dB |
| Isolation | >90 dB @ 26.5 GHz, >60 dB @ 50 GHz |
| Operating Cycles | 5 million |
| Control Interface | TTL/5V CMOS compatible |
| Type | 4-port coaxial transfer switch |
