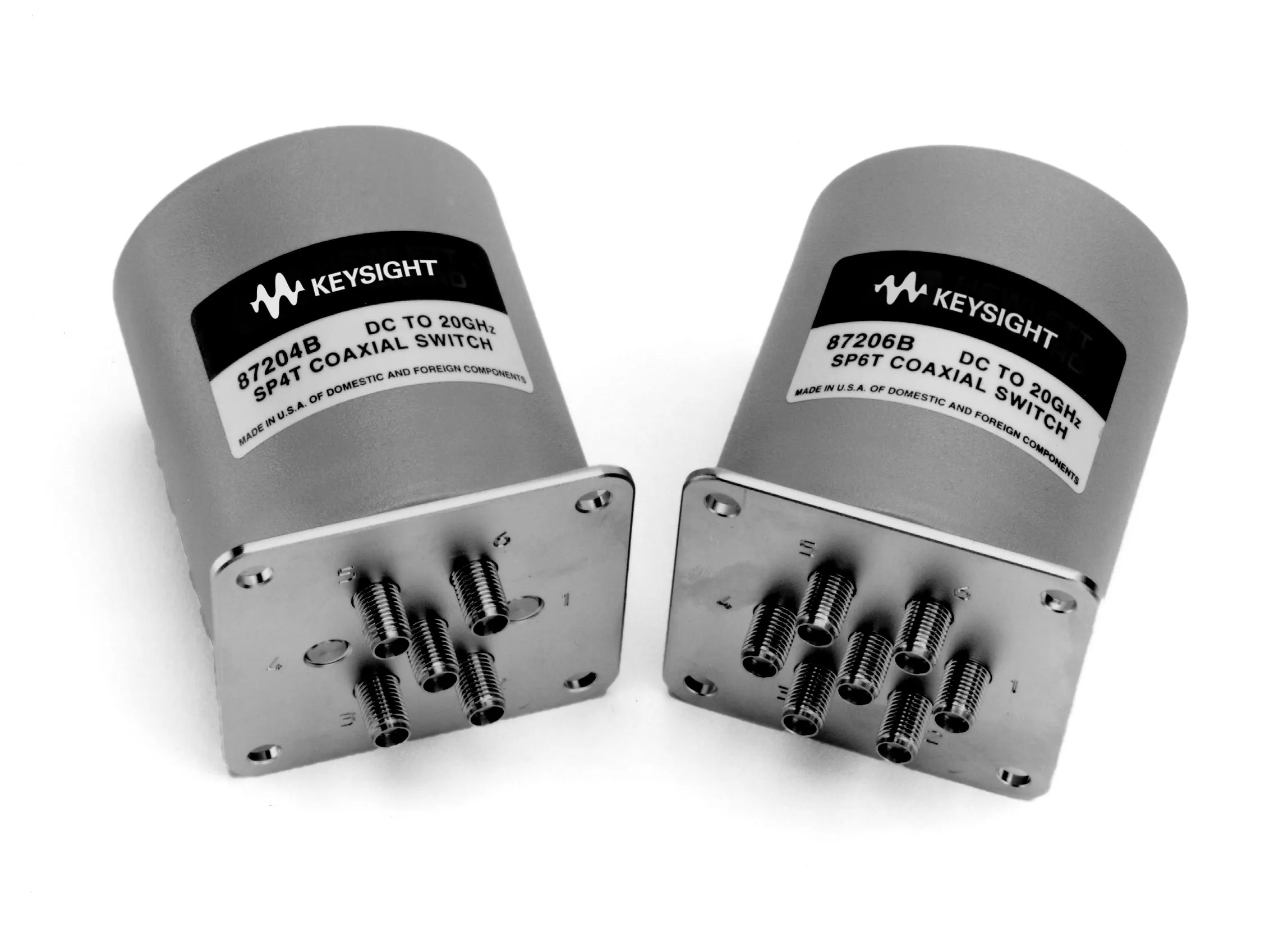

Keysight 87204B SP4T Terminated Multiport Switch
Request a quote
Keysight 87204B is an SP4T coaxial switch with 0.03 dB insertion loss repeatability for 10 million operating cycles, designed for automated test and signal routing.
Product details
| Model | 87204B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87204B is an SP4T terminated multiport coaxial switch designed for automated test and measurement, signal monitoring, and routing applications. The switch is engineered for high reliability with an operating life of 10 million cycles and exceptional 0.03 dB insertion loss repeatability guaranteed for 5 million cycles. This design minimizes measurement uncertainty and improves system uptime while reducing cost of ownership through reduced maintenance and calibration cycles.
Key Features
- SP4T configuration with frequency range dc to 20 GHz
- 10 million cycle operating life with magnetic latching
- 0.03 dB insertion loss repeatability guaranteed to 5 million cycles
- 100 dB minimum isolation at 12 GHz
- Terminated ports for optimized signal path
- Self-interrupting drive circuit
- Compatible with Keysight 87130A/70611A and 11713B/C attenuator/switch drivers
Applications
- Production test systems
- Satellite and antenna monitoring systems
- Automated test and measurement instrumentation
- Signal routing in RF measurement systems
Specifications
| 87204B | dc to 20 GHz, SP4T terminated |
