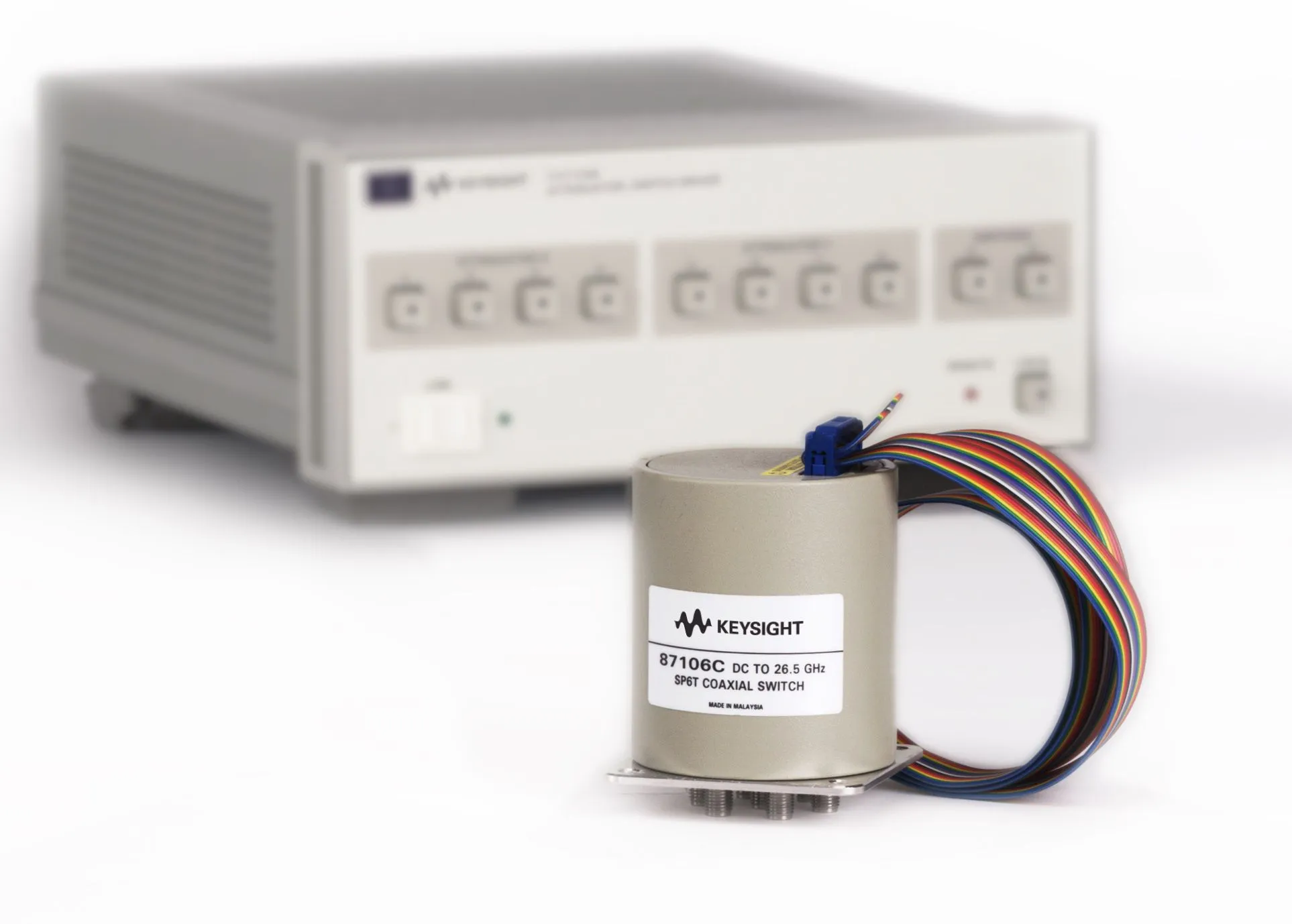

Keysight 87106C Multiport Coaxial Switch
Request a quote
Keysight 87106C SP6T coaxial switch for DC to 26.5 GHz with 0.03 dB repeatability, 10 million cycle life, and >90 dB isolation at 26.5 GHz.
Product details
| Model | 87106C |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87106C is a multiport coaxial switch designed to improve insertion loss repeatability and isolation in high-performance test systems. The SP6T configuration features magnetic latching and terminated ports, providing the long life and reliability required for automated test and measurement, signal monitoring, and routing applications. Low insertion loss repeatability reduces sources of random errors in the measurement path, improving overall measurement accuracy.
Key Features
- SP6T configuration with DC to 26.5 GHz frequency range
- Magnetic latching with terminated ports
- Operating life of 10 million cycles
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
- Excellent isolation, typically >90 dB at 26.5 GHz
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)
Applications
- Automated test systems (ATS) and measurement
- High-frequency RF signal routing and switching
- Signal monitoring and characterization applications
Specifications
| Type | SP6T configuration Magnetic latching Terminated ports |
| Excellent RF Repeatability & Long Life Span | Operating life of 10 million cycles Guaranteed repeatability of 0.03 dB up to 5 million cycles |
| Superior RF Performance | Excellent isolation, typically >90 dB at 26.5 GHz |
| 87106C | dc to 26.5 GHz, SP6T Terminated |
