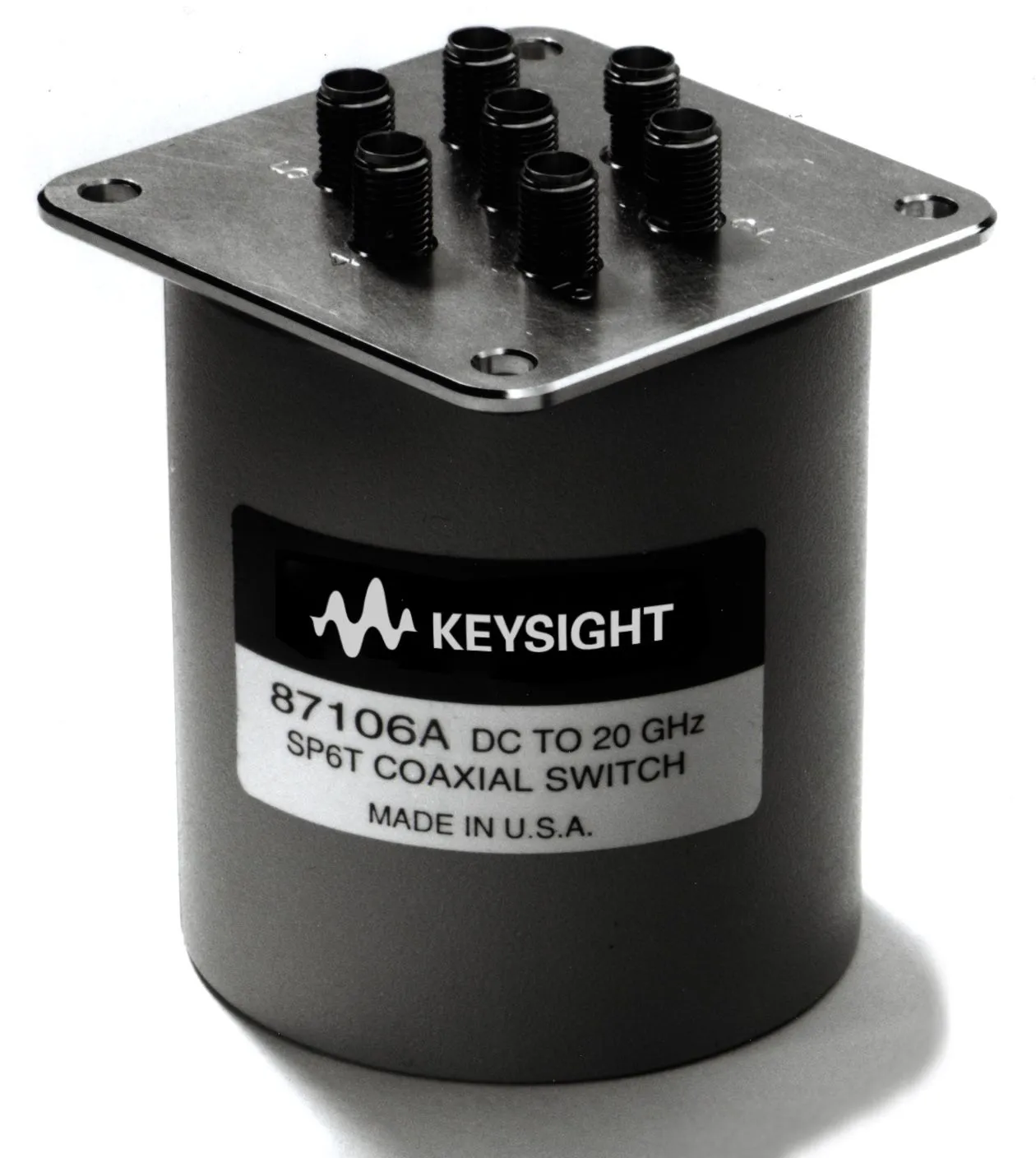

Keysight 87106A Multiport Coaxial Switch
Request a quote
Keysight 87106A is a SP6T multiport coaxial switch with 0.03 dB insertion loss repeatability, 10 million cycle operating life, and excellent isolation for ATE.
Product details
| Model | 87106A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87106A is a SP6T multiport terminated coaxial switch designed for automated test systems, signal monitoring, and routing applications. With magnetic latching operation and opto-electronic indicators, the 87106A delivers the high repeatability and reliability required for demanding measurement environments where signal integrity and calibration efficiency are critical.
Key Features
- SP6T configuration with magnetic latching
- Terminated ports for signal integrity
- Operating life of 10 million cycles
- Guaranteed repeatability of 0.03 dB up to 5 million cycles
- Excellent isolation, typically greater than 90 dB to 26.5 GHz
- Opto-electronic indicators and interrupts
- TTL/5V CMOS compatible (optional)
- DC to 4 GHz frequency range
Applications
- Automated test systems and test equipment (ATE)
- Signal monitoring and routing
- Measurement systems requiring high repeatability
- Applications requiring long-term reliability
Benefits
- Excellent RF repeatability and long lifespan reduce calibration cycles
- Low insertion loss repeatability improves measurement accuracy
- Superior RF performance with excellent isolation
- Increases test system uptime and reduces cost of ownership
Specifications
| Type | SP6T configuration Magnetic latching Terminated ports |
| Excellent RF Repeatability & Long Life Span | Operating life of 10 million cycles Guaranteed repeatability of 0.03 dB up to 5 million cycles |
| Superior RF Performance | Excellent isolation, typically >90 dB to 26.5 GHz |
| 87106A | dc to 4 GHz, SP6T Terminated |
