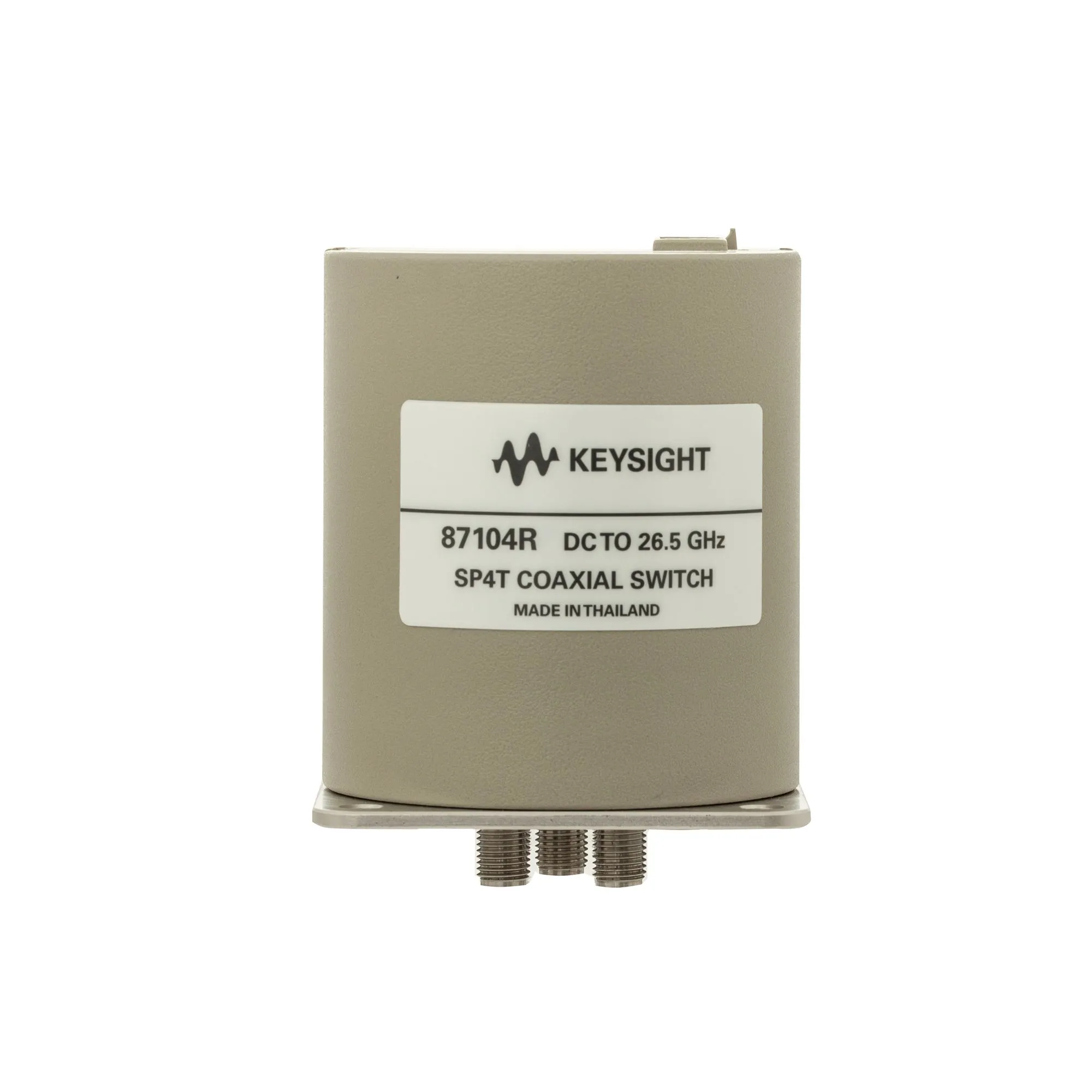

Keysight 87104R Low PIM Coaxial Switch
Request a quote
Keysight 87104R is a low PIM SP4T coaxial switch with -165 dBc performance, 0.03 dB insertion loss repeatability, and 3 million cycles of operating life.
Product details
| Model | 87104R |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87104R is a low passive intermodulation (PIM) SP4T coaxial switch designed for applications where multiple transmitted signals share a common antenna or where high transmitter signal levels interact with sensitive receivers. With a guaranteed PIM performance of -165 dBc, excellent isolation, and repeatable insertion loss, the 87104R maintains signal integrity in demanding RF and microwave test systems.
Key Features
- Low PIM performance of -165 dBc
- Guaranteed 0.03 dB insertion loss repeatability
- Guaranteed 3 million cycles per section of operating life
- Excellent isolation minimizes cross-talk between channels
- DC to 26.5 GHz frequency range
Applications
- Multi-antenna RF systems with signal combining
- High-power transmitter test and measurement
- Automated test equipment (ATE)
- Signal routing in microwave test systems
Specifications
| Frequency Range | DC to 26.5 GHz |
| Configuration | SP4T |
| PIM Performance | -165 dBc |
| Insertion Loss Repeatability | 0.03 dB |
| Operating Life | 3 million cycles per section |
