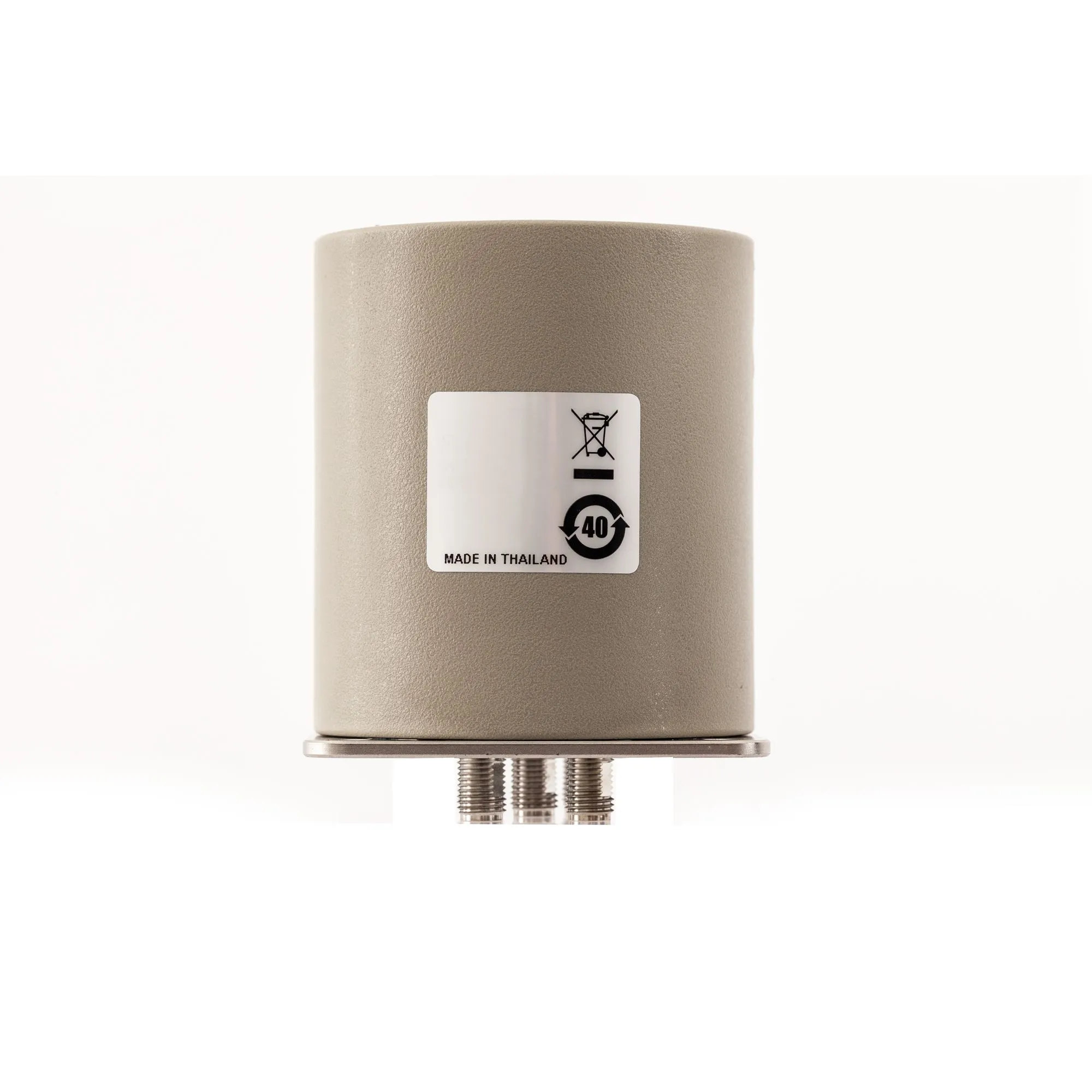

Keysight 87104P Low PIM Coaxial Switch
Request a quote
Keysight 87104P is a low PIM SP4T coaxial switch operating DC-4GHz with -165 dBc PIM, 0.03 dB insertion loss repeatability, and 3M cycle life.
Product details
| Model | 87104P |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 87104P is a low passive intermodulation (PIM) SP4T coaxial switch designed for applications where multiple transmitted signals share a common antenna or where transmitter signal levels are high. It ensures signal integrity and maximizes test throughput in demanding RF applications.
Key Features
- Low PIM performance: -165 dBc
- Operating frequency: DC to 4 GHz
- Guaranteed 0.03 dB insertion loss repeatability
- Guaranteed 3 million cycles of operating life per section
- Excellent isolation minimizes cross-talk between channels
- SP4T switch configuration
Applications
- Wireless base station testing with shared antennas
- High-power RF signal routing and switching
- Receiver sensitivity testing where low PIM is critical
Specifications
| Operating Frequency | DC to 4 GHz |
| Switch Type | SP4T |
| PIM Level | -165 dBc (typical) |
| Insertion Loss Repeatability | 0.03 dB (guaranteed) |
| Operating Life | 3 million cycles per section |
